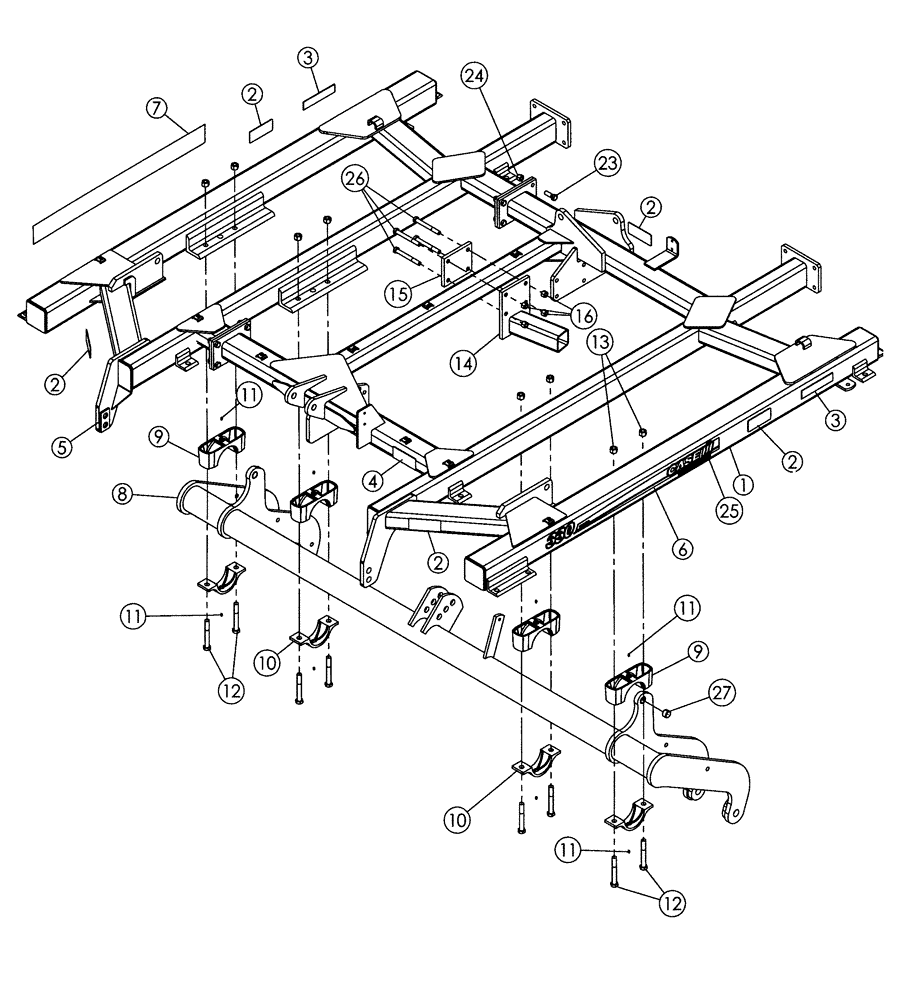

Запчасти Case IH 330 TRUE-TANDEM (39.100.02) - 34 FOOT MAIN FRAME PARTS (39) - FRAMES AND BALLASTING

1

448380A1

FRAME ASSY

Main, Lh, Inc. 2 - 4

1шт.

2

18534227

DANGER DECAL

Danger

4шт.

3

311864A1

REFLECTOR

Amber

2шт.

4

18534277

DECAL

Warning

1шт.

5

448382A1

FRAME ASSY

Main, Rh, Inc 6 - 7

1шт.

6

87735839

DECAL

330, Lh

1шт.

7

87735840

DECAL

330, Rh

1шт.

8

448191A1

ROCKSHAFT

Tandem

1шт.

8

84393815

KIT

Complete Rockshaft Update, With Tandems, Not Shown

1шт.

9

86984889

BEARING,97 mm

Wheel Shaft

4шт.

10

86984888

CAP

Wheel Shaft

4шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

12

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

8шт.

13

87681198

NUT,Hex, 7/8"-9, 0.45 high

8шт.

14

87614377

MOUNTING PARTS

Mount Weld, Coulter

1шт.

15

87614380

PLATE

Plate, Outer Coulter Mounting

2шт.

16

280375

NUT,3/4"-10, GC

4шт.

23

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

24

280375

NUT,3/4"-10, GC

8шт.

25

87595770

DECAL

CIH Drip Mold

2шт.

Used On 2007 And Prior Models

1шт.

25

87594280

DECAL

Case IH

2шт.

Used On 2008 And After Models

1шт.

26

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

27

112886C1

BUSHING

1-1/4 ID

2шт.
