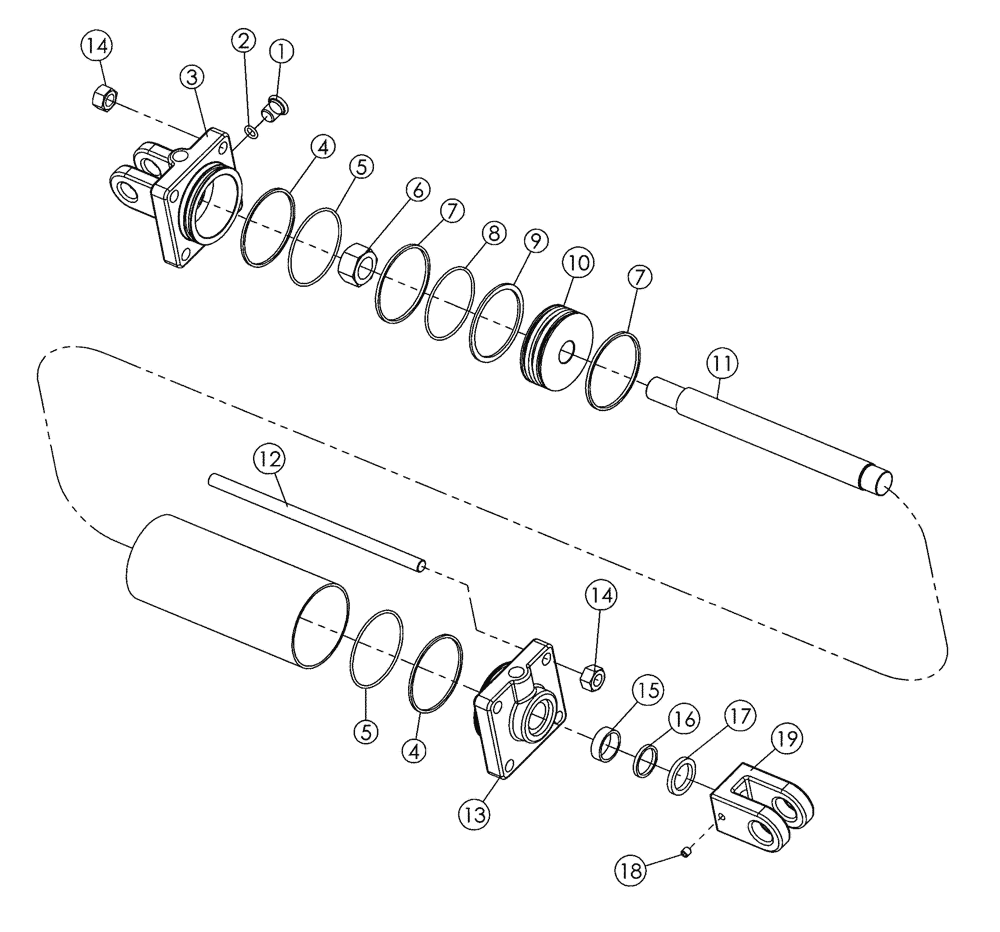

Запчасти Case IH 330 TRUE-TANDEM (35.100.09) - 4-1/4 X 8 IN - 34 FT MAIN LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

87423777

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

Incl 2 - 19 Seal kit 87409033

1шт.

84281659

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4-1/4 x 8, Rephasing, Incl 2 - 19 Seal Kit 87409041

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87425784

CYLINDER END CAP

Base End

1шт.

4

NS

NOT SERVICED

Back up Seal, Incl in Seal kit, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

6

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

7

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

10

87409473

PISTON

Cylinder

1шт.

11

87393647

PISTON ROD

Rod

1шт.

11

87409454

PISTON

1шт.

12

87409486

BOLT

Tie

4шт.

13

87409398

HEAD

Cap Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

5/8, NC

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409387

CLEVIS,1 -1/4" - 12

Rod End for 87423777

1шт.

19

84258353

CLEVIS,1 -1/2" - 12

Rod End For 84281659

1шт.

20

87409033

SEAL KIT

for Cylinder 87423777

1шт.

20

87409041

SEAL KIT

for Cylinder 84281659

1шт.
