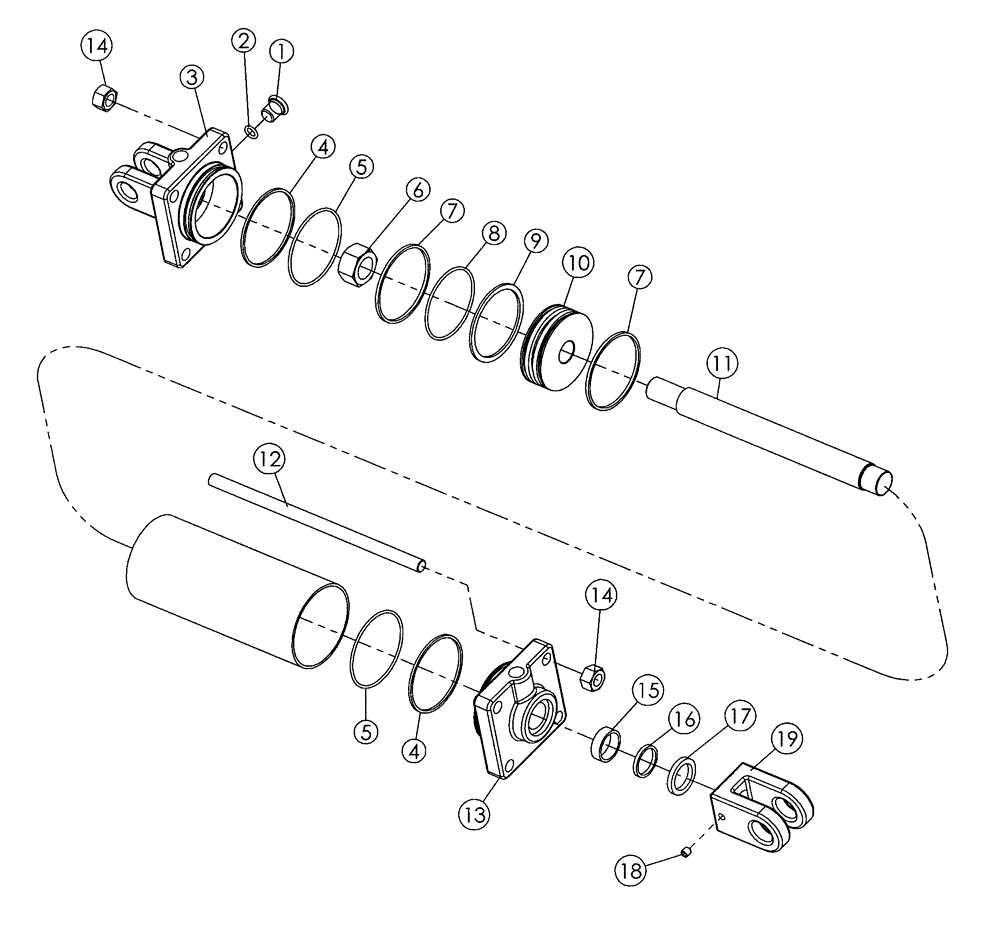

Запчасти Case IH 330 TRUE-TANDEM (35.100.07) - 3-3/4 X 8 IN - 22 FOOT MAIN LIFT, 25 & 31 FOOT WING LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

3-3/4 x 8, Rephasing, Inc. 1 - 19

1шт.

84262946R

REMAN-HYD CYLINDER

330 TRUE-TANDEM 22'-34' DISK HARROW, 3-3/4 x 8, Rephasing

1шт.

84262946C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409431

HEAD

Clevis Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87409471

PISTON

Cylinder

1шт.

11

87409453

PISTON ROD

Nitro Tec Finish

1шт.

11

87525935

PISTON ROD

Chrome Finish

1шт.

12

87409486

BOLT

Tie

4шт.

13

87409396

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

5/8, NC

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409387

CLEVIS,1 -1/4" - 12

Rod End, Wing Cylinder

1шт.

19

84258352

CLEVIS,1 -1/4" - 12

Rod End, Lift Cylinder

1шт.

87409040

SEAL KIT

1шт.
