(35.100.06) - 3-1/2 X 8 IN - 22 FOOT WING LIFT CYLINDER

Запчасти Case IH 330 TRUE-TANDEM (35.100.06) - 3-1/2 X 8 IN - 22 FOOT WING LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

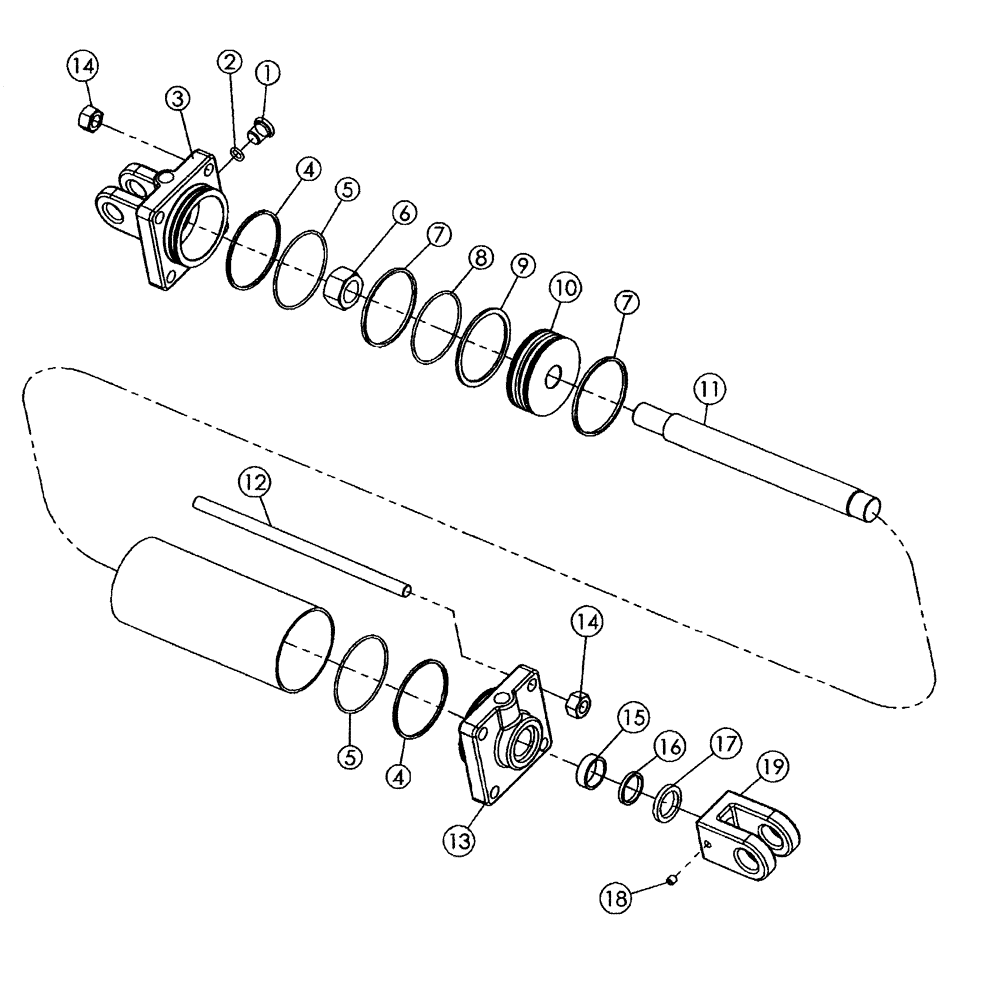

Схема запчастей Case IH 330 TRUE-TANDEM - (35.100.06) - 3-1/2 X 8 IN - 22 FOOT WING LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
11
1
9
6
14
7
4
17
18
12
14
13
15
7
19
4
5
5
2
16
3
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84262947

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 x 8, Inc. 1 - 19

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409430

HEAD

1шт.

6

232-46316

NUT,1"-14, GC

1шт.

10

87409469

PISTON

1шт.

11

87525934

PISTON ROD

1шт.

12

87409486

BOLT

Tie Rod

4шт.

13

87409395

HEAD

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

84258352

CLEVIS,1 -1/4" - 12

1шт.

87409038

SEAL KIT

1шт.
