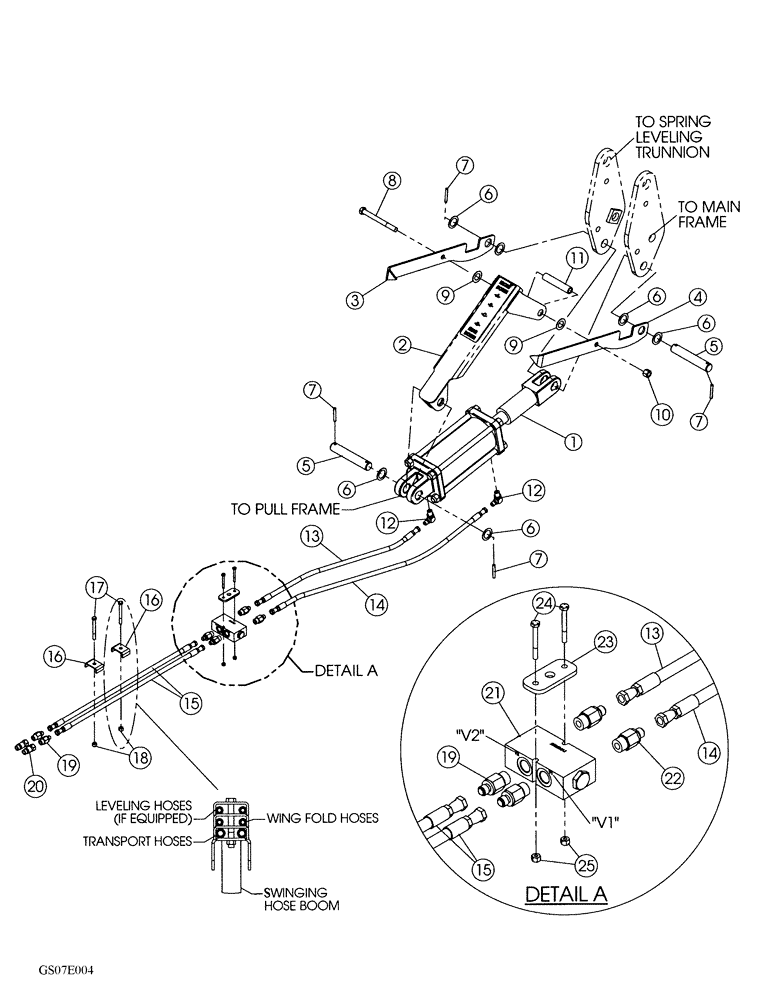

Запчасти Case IH 330 TRUE-TANDEM (35.100.04) - LEVELING PULL FRAME HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 x 8 With Stop

1шт.

1

87388864R

REMAN-HYD CYLINDER

330 TRUE-TANDEM 22'-34' DISK HARROW, 5 x 8 With Stop

1шт.

1

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

2

86993914

INDICATOR

Leveling, Inc. 26

1шт.

3

87411878

BAR

Pointer, Rh

1шт.

4

86993913

BAR

Pointer, Lh

1шт.

5

86993942

PIN,31.75mm OD x 184mm L

1.25 Dia. x 154 mm

2шт.

6

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1.25, Machine, 14 Ga

6шт.

7

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

4шт.

8

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

9

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1, Machine, 14 Ga

2шт.

10

85700693

NUT,5/8" - 11, Gr C

1шт.

11

86993912

BUSHING

Level Indicator

1шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

2шт.

13

1969386C1

HOSE

1/4 x 23

1шт.

14

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

15

1254526C2

HOSE ASSY.

1/4 x 135

2шт.

16

06200125

HOSE CLAMP

6шт.

17

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

18

86992213

NUT

3/8, NC

2шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

4шт.

20

25705041

COUPLING

3/4 SAEF, Male ISO

2шт.

21

298624A1

VALVE

Check

1шт.

22

1263477C3

HYD CONNECTOR

Orifice, 3/4 SAEM - 9/16 JICM

2шт.

23

09987521

PLATE

Top

1шт.

24

426-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 8

2шт.

25

86992211

NUT

1/4, NC

2шт.

26

86993500

DECAL

Depth

1шт.
