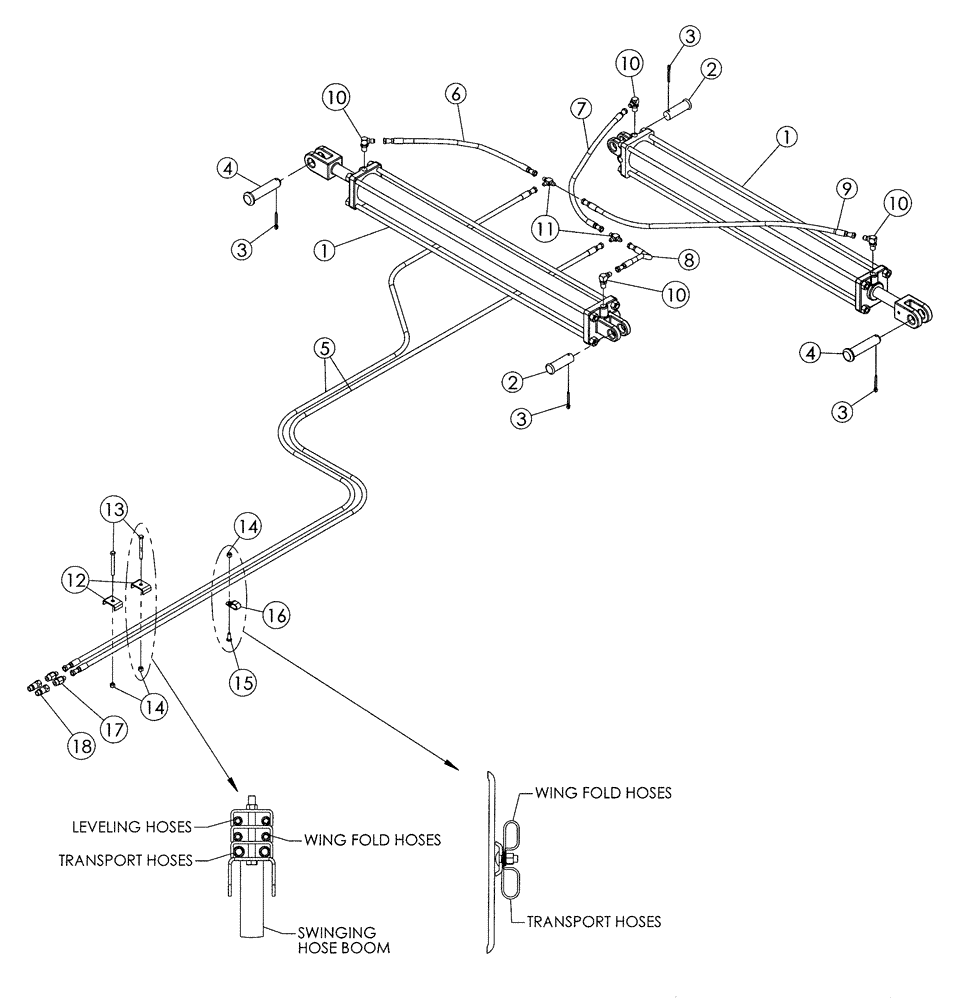

Запчасти Case IH 330 TRUE-TANDEM (35.100.02) - 22, 25, AND 31 FOOT WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87388869

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

3-1/2 x 42 , 22 And 25 ft

2шт.

87388869R

REMAN-HYD CYLINDER

330 TRUE-TANDEM - 22'-34' DISK HARROW

2шт.

87388869C

CORE-HYD CYLINDER

Return Number

1шт.

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

4 x 42, 31 ft

2шт.

1

87388875R

REMAN-HYD CYLINDER

330 TRUE TANDEM 22'-34' DISK HARROW, 4 x 42, 31 ft, 22, 25, AND 31 FOOT WING FOLD HYDRAULICS

2шт.

1

87388875C

CORE-HYD CYLINDER

Return Number

2шт.

2

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

Clevis, 1-1/4 x 3-3/4

2шт.

3

432-2032

COTTER PIN,5/16" x 2"

5/16" x 2"

4шт.

4

439-52088

HEADED PIN,31.75mm OD x 139.7mm L

Clevis 1-1/4 x 5-1/2

2шт.

5

337157A1

HOSE ASSY.,6.4mm ID x 6860mm L

1/4 x 270, 22, 25, And 31 ft

2шт.

6

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

22, 25, and 31 ft

1шт.

7

1969386C1

HOSE

1/4 x 23, 22, 25 And 31 ft

1шт.

8

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

1шт.

9

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

22 ft

1шт.

9

147876C1

HYDRAULIC HOSE

1/4 x 45, 25 And 31 ft

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

11

218-593

TEE,9/16"-18, 37 Degree

9/16 JICM

2шт.

12

06200125

HOSE CLAMP

Hose

3шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(2 clamps)

3шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2 (3 clamps)

2шт.

14

86992213

NUT

3/8, NC, Lock

1шт.

15

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

16

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

3/4 SAEM - 9/16 JICM

2шт.

18

25705041

COUPLING

3/4 SAEF - Male ISO

2шт.
