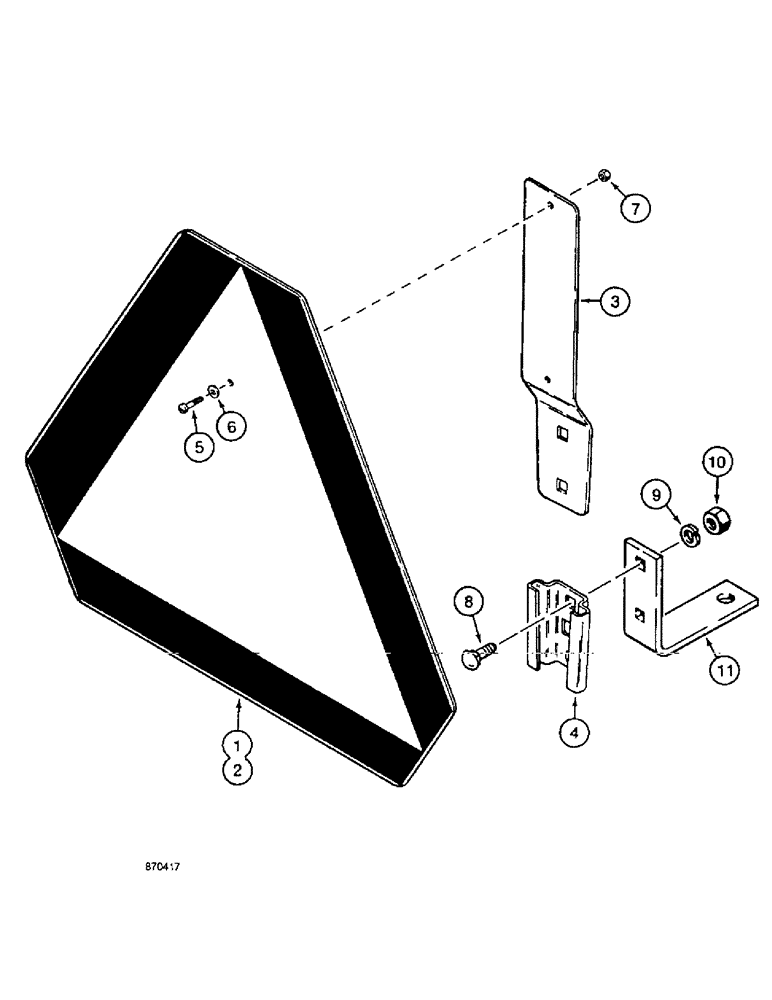

Запчасти Case IH 4900 (9-56) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

EMBLEM ASSEMBLY, slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE slow moving vehicle emblem

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL slow moving vehicle emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET slow moving vehicle emblem mounting, long

1шт.

4

A59457

BRACKET

mounting slow moving vehicle emblem, short, Serial Range: welded-frame

1шт.

5

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips No. 10 NC x 1/2 inch

2шт.

6

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

flat, 13/64 x 1/2 x 3/64 inch

2шт.

7

225-14110

NUT,#10-24

2шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

811324C1

SUPPORT

BRACKET L shaped, slow moving vehicle emblem mounting

1шт.
