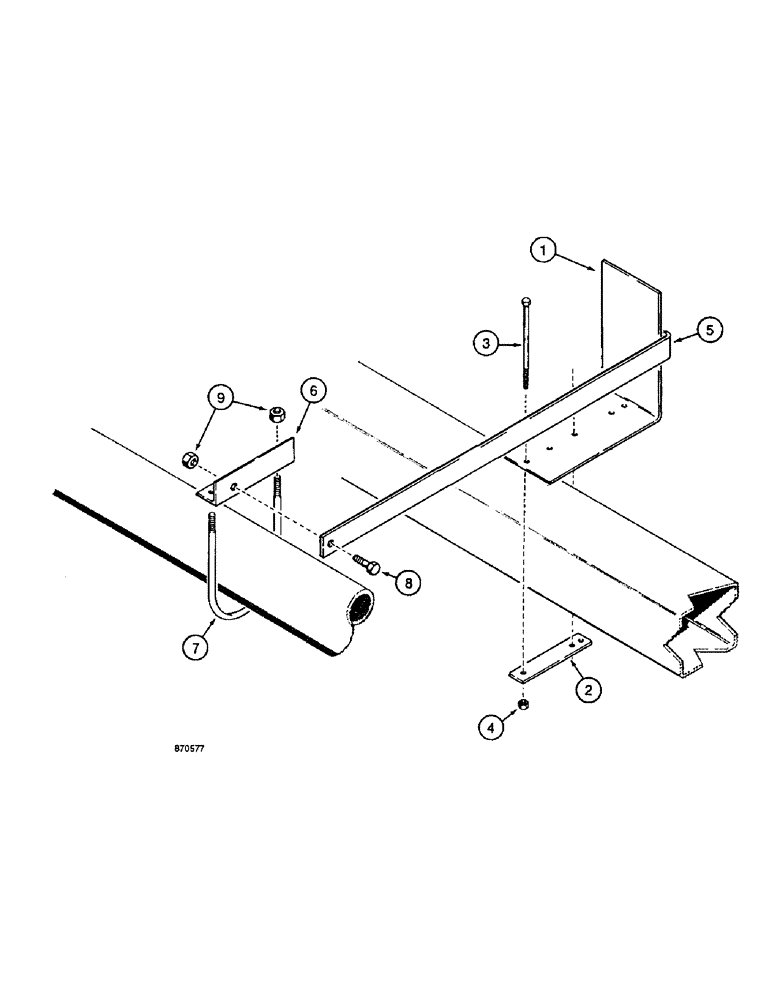

Запчасти Case IH 4900 (9-52) - DEPTH GAUGE AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

91368C1

SUPPORT

BRACKET depth gauge

1шт.

2

91371C1

BAR

depth gauge clamping

1шт.

3

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

BOLT hex, 1/4 NC x 5 inch

2шт.

4

232-4114

LOCK NUT,1/4"-20, GC

2шт.

5

91369C1

BAR

depth indicator

1шт.

6

91370C2

ANGLE

BRACKET, depth indicator bar, replaces 91370C1

1шт.

7

26943R1

U-BOLT,3/8" - 16 x 5 1/2"

BOLT "U" 3/8 inch NC

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

3шт.
