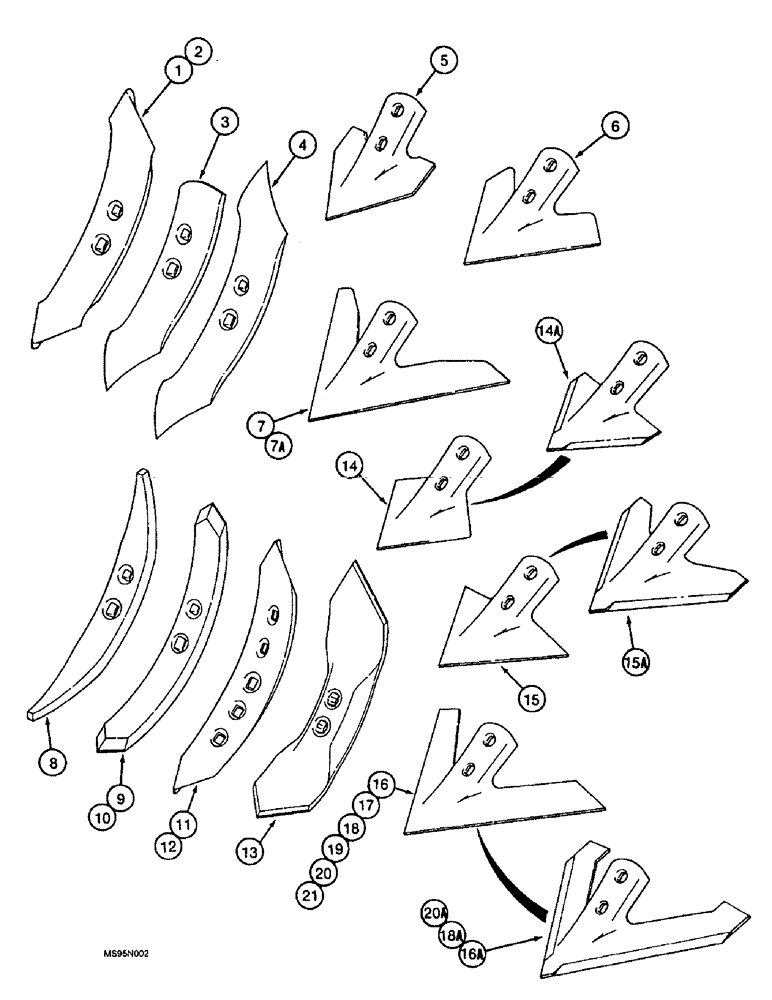

Запчасти Case IH 4900 (9-50) - GROUND WORKING TOOLS, GROUND WORKING TOOLS FOR VIBRA SHANKS, (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
596623R1
POINT
1-3/4 inch (44 mm) wide, if used
1шт.
2
811799C1
POINT
2 inch (51 mm) wide, reversible chisel, if used
1шт.
3
594227R1
TOOTH
POINT, 2 inch (51 mm) wide pencil, if used
1шт.
4
811889C1
POINT
2 inch (51 mm) wide reversible pencil, if used
1шт.
5
591588R1
TIP
SHOVEL, 4-1/2 inch (114 mm) wide, if used
1шт.
6
591589R2
TIP
SWEEP, 7-1/2 inch (191 mm) wide, if used
1шт.
7
591590R2
TIP
SWEEP, 9 inch (229 mm) wide, if used
1шт.
7a
1547099C2
SWEEP
10.5
1шт.
8
602594R1
POINT
2 inch (51 mm) wide, reversible spike, used on vibra chisel shank, if used
1шт.
9
811860C1
POINT
2 inch (51 mm) wide x 1/2 inch (13 mm) thick reversible chisel, if used
1шт.
10
601986R1
POINT
2 inch (51 mm) wide x 5/8 inch (16 mm) thickreversible chisel, if used
1шт.
11
594545R1
SHOVEL
3 inch (76 mm) wide twisted, left hand, if used
1шт.
12
594546R1
SHOVEL
3 inch (76 mm) wide twisted, right hand, if used
1шт.
13
602595R1
TIP
SHOVEL, 4-1/2 inch (114 mm) wide, reversible, if used
1шт.
14
602276R2
SWEEP
SHOVEL, 8 inch (203 mm) wide, if used, replaced by 1547105C1, Ref. 14A
1шт.
14a
1547105C1
SWEEP
8"
1шт.
15
602596R2
TIP
SHOVEL, 10 inch (254 mm) wide, if used, replaced by Ref. 15A
1шт.
15a
1547106C1
SWEEP
10"
1шт.
16
603054R3
TIP
SWEEP, 12 (305 mm) wide x 6.45 mm) thick, if used, replaced by 1547107C1 Ref. 16A
1шт.
16a
1547107C1
SWEEP
12"
1шт.
17
602257R3
TOOTH
SWEEP, 12 (305) wide x 5/16 inch (8 mm) thick, if used
1шт.
18
603055R3
TIP
SWEEP, 14 (356) wide x 1/4 inch (6.35 mm) thick, if used, replaced by 1547108C1 Ref. 18A
1шт.
18a
1547108C1
SWEEP
14"
1шт.
19
601988R3
SWEEP
14 (356) wide x 5/16 inch (8 mm) thick, if used
1шт.
20
602592R3
TIP
SWEEP, 16 (406) wide x 1/4 inch (6.35 mm) thick, if used, replaced by 1547109C1 Ref. 20A
1шт.
20a
1547109C1
SWEEP
16"
1шт.
21
602207R3
TOOTH
SWEEP, 16 (406) wide x 5/16 inch (8 mm) thick, if used
1шт.
