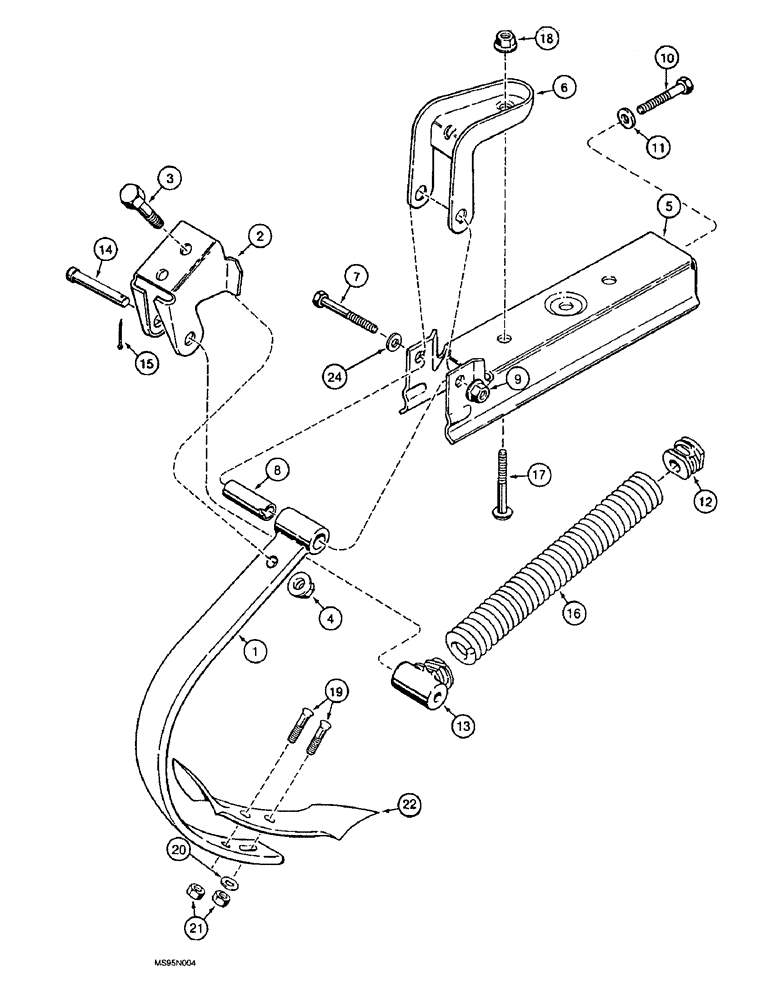

Запчасти Case IH 4900 (9-46) - VIBRA SHANK (09) - CHASSIS/ATTACHMENTS

1

813293C1

SHANK

ground working tool

1шт.

2

591542R1

BRACKET

CLAMP shank

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

4

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

5

97572C3

BRACKET

shank

1шт.

6

97573C1

CLAMP

shank

1шт.

7

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

1шт.

8

811354C2

BUSHING

shank clamp

1шт.

9

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

12

591547R1

PLUG

spring retaining

1шт.

13

591544R1

PLUG

spring

1шт.

14

591545R1

PIN,13.08mm OD x 61.98mm L

special

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

1шт.

16

591546R2

SPRING

shank return replaces 591546R1

1шт.

17

811340C3

BOLT,1/2" - 13 x 5 1/2"

shank mounting

1шт.

18

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

19

418-3722

PLOW BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT plow, 7/16 NC x 1-3/8 inch

1шт.

20

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

21

425-107

NUT,7/16"-14, G5

1шт.

22

REF

INSTRUCTION

POINT, 2 inch (51 mm) reversible chisel, see figure 9-50 for ground working tools

1шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.
