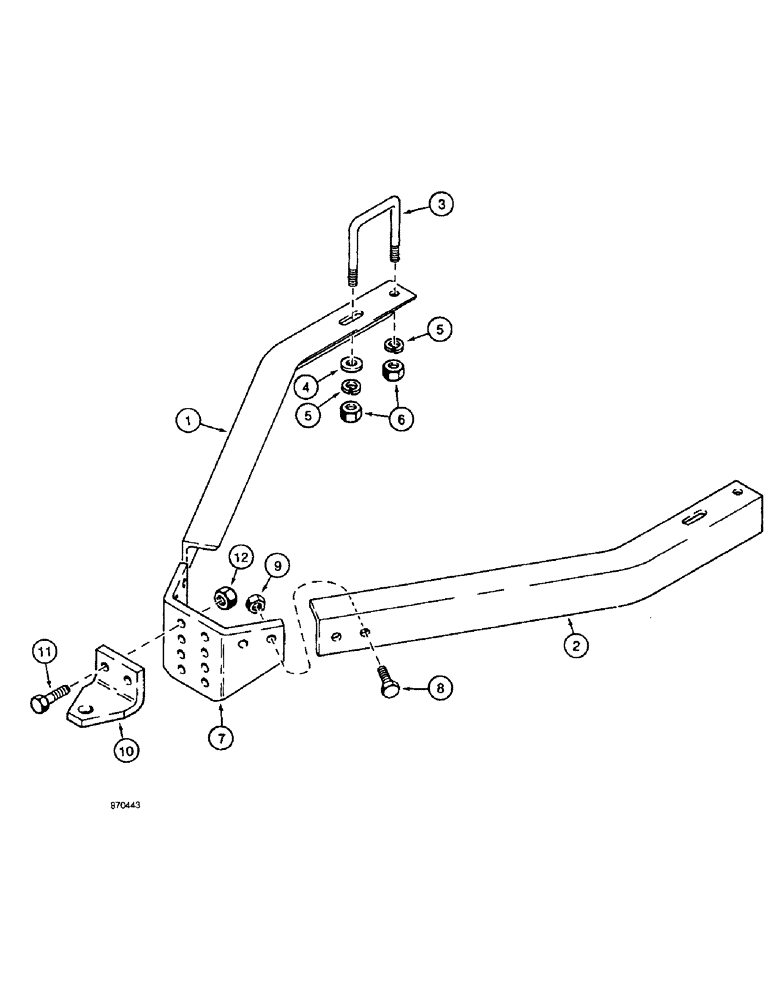

Запчасти Case IH 4900 (9-44) - TRAILING HITCH (09) - CHASSIS/ATTACHMENTS

1

598843R2

ANGLE

ARM trailing hitch, left hand

1шт.

2

598844R2

ANGLE

ARM trailing hitch, right hand

1шт.

3

811655C1

BOLT,5/8" - 11 x 5 1/2"

U, 5/8 inch NC

2шт.

4

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

5

492-11062

BEARING WASHER,5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

598071R1

SUPPORT

trailing hitch arms

1шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

598072R1

ANGLE

BRACKET hitch mounting

1шт.

11

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

12

425-1010

NUT,5/8"-11, G5

2шт.
