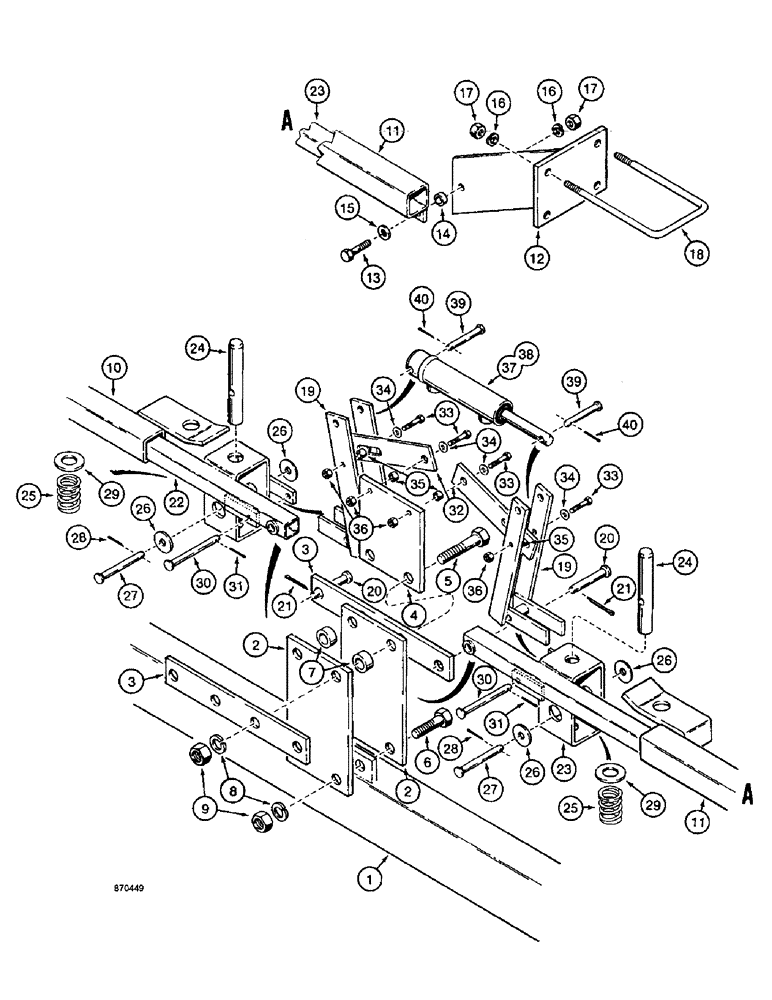

Запчасти Case IH 4900 (9-42) - AUTOMATIC WING TRANSPORT LOCK, 31 FOOT (9.4 M) THROUGH 52 (09) - CHASSIS/ATTACHMENTS

1

1336629C91

FRAME

ASSEMBLY, main, front Vibra Tiller, parts list figure 9-16

1шт.

2

1284163C1

PLATE

automatic wing transport mounting

2шт.

3

1284164C1

BAR

wing supporting

2шт.

4

1284165C1

PLATE

lever stop

1шт.

5

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

7

355682R1

SPACER,3/4" Pipe x 3/4"

lever stop plate

2шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

9

425-1012

NUT,3/4"-10, G5

4шт.

10

97639C1

TUBE ASSY.

SUPPORT bracket, outer, left hand

1шт.

11

97640C1

TUBE ASSY.

SUPPORT bracket, outer, right hand

1шт.

12

97649C1

SUPPORT ASSY.

bracket, outer

2шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

14

320993R1

SPACER,7/8" Tube x 1/2"

outer support

2шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

2шт.

16

492-11062

BEARING WASHER,5/8"

10шт.

17

425-1010

NUT,5/8"-11, G5

10шт.

18

822655C1

SPARE PART U BOLT, 5/8 inch NC

4шт.

19

1284082C2

LEVER

automatic wing transport lock

2шт.

20

439-51244

HEADED PIN,3/4" x 2 3/4"

headed, 3/4 x 2-3/4 inch

2шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

1/2 x 1-1/2 inch

2шт.

22

1284078C1

TUBE,164 mm Length

BRACKET left hand

1шт.

23

1284079C1

TUBE

BRACKET right hand

1шт.

24

1284086C1

PIN

transport locking

2шт.

25

656345C2

SPRING

transport locking pin

2шт.

26

495-81163

WASHER,17/32" x 1 1/2" x .120"

flat, 17/32 x 1-1/2 x 7/64 inch

4шт.

27

439-5860

HEADED PIN,1/2" x 3 3/4"

1/2 x 3-3/4 inch

2шт.

28

432-1216

COTTER PIN,3/16" x 1"

2шт.

29

496-21106

WASHER,1 1/16" x 2" x .209", HDN

2шт.

30

439-5864

HEADED PIN,1/2" x 4"

headed, 1/2 x 4 inch to lever

2шт.

31

432-1216

COTTER PIN,3/16" x 1"

2шт.

32

91251C2

BAR

lever restraining

2шт.

33

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

34

28588R1

WASHER

flat, 11/32 x 11/16 x 3/64 inch

4шт.

35

568257R1

SPACER,1/2" Tube x 3/8"

1/2 x 3/8 inch

4шт.

36

232-4115

LOCK NUT,5/16"-18, GC

4шт.

37

1286364C91

CYLINDER ASSY.

1-1/2 (38 mm) ID x 4 inch (102 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-32, if used

1шт.

38

811998C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke, Cessna, parts list figure 8-34, if used

1шт.

39

439-5848

HEADED PIN,1/2" x 3", G5

headed, 1/2 x 3 inch to lever

2шт.

40

432-1216

COTTER PIN,3/16" x 1"

2шт.
