Запчасти Case IH 4900 (9-40) - SECONDARY WING LIFT AND HINGES - REAR, 47 FOOT (14.5 M) (09) - CHASSIS/ATTACHMENTS

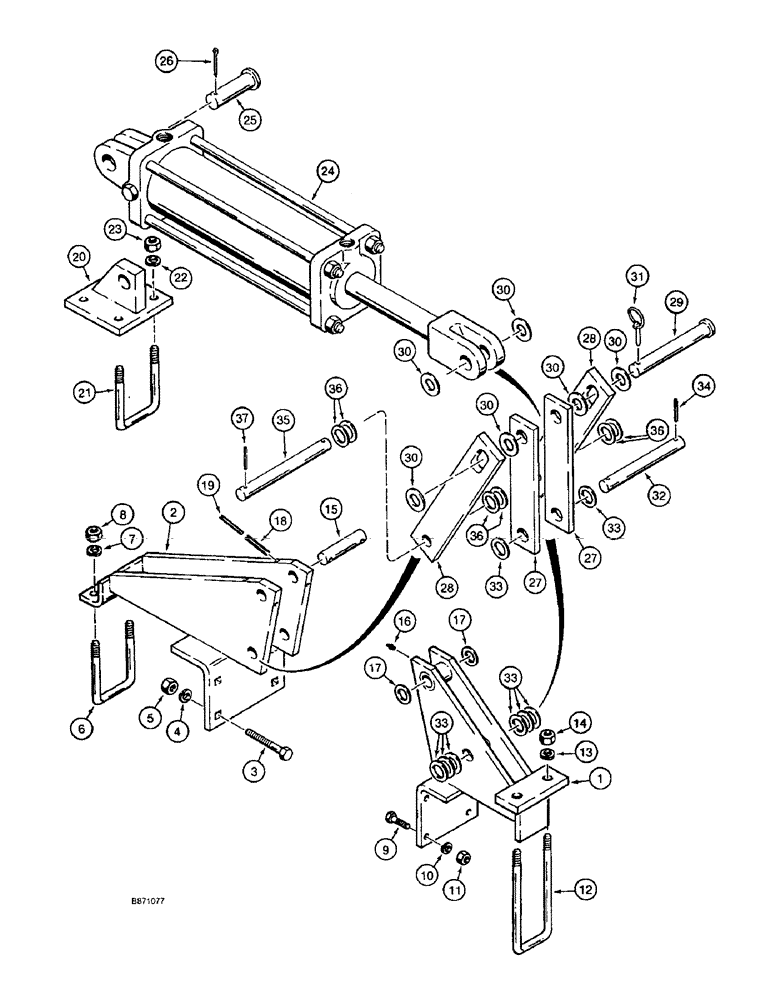

Схема запчастей Case IH 4900 - (9-40) - SECONDARY WING LIFT AND HINGES - REAR, 47 FOOT (14.5 M) (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

1284379C1

HINGE

wing frame, outer

2шт.

2

1980891C1

HINGE

wing frame, inner

2шт.

3

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

8шт.

6

811655C1

BOLT,5/8" - 11 x 5 1/2"

U, 5/8 inch NC, inner

2шт.

7

492-11062

BEARING WASHER,5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

11

425-108

NUT,1/2" - 13, Gr 5

8шт.

12

1334025C1

U-BOLT

BOLT "U" outer

2шт.

13

492-11062

BEARING WASHER,5/8"

4шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

1284375C2

PIN

hinge pivot

2шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

396-11106

WASHER,1 1/16" x 2" x .134", HDN

flat, 1-1/16 x 2 x 1/8 inch, hardened

4шт.

18

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

5/16" x 2 1/2", Slotted

4шт.

19

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

3/16" x 2 1/2", Slotted

4шт.

20

1284385C1

SUPPORT ASSY.

secondary wing lift cylinder

2шт.

21

811655C1

BOLT,5/8" - 11 x 5 1/2"

U, 5/8 inch NC, inner

4шт.

22

492-11062

BEARING WASHER,5/8"

8шт.

23

425-1010

NUT,5/8"-11, G5

8шт.

24

1272150C91

CYLINDER

ASSEMBLY, 4 (102) ID x 16 inch (406 mm) stroke, parts list figure 8-30

2шт.

25

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

1-1/4 x 3-1/4 inch, hardened

2шт.

26

32-1632

COTTER PIN,1/4" x 2"

2шт.

27

1284364C1

BAR

LINK outer hinge to cylinder rod end

4шт.

28

1284363C1

BAR

LINK inner hinge to cylinder rod end

4шт.

29

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

1-1/4 x 6-1/4 inch, hardened

2шт.

30

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32 x 2 x 1/8 inch

12шт.

31

A30338

PIN

lock

2шт.

32

854527C1

PIN

wing lift

2шт.

33

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

16шт.

34

38-31632

PIN,1/4" x 2", Coiled

1/4" x 2", Coiled

4шт.

35

811962C1

PIN

lift pivot

2шт.

36

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

12шт.

37

38-31632

PIN,1/4" x 2", Coiled

1/4" x 2", Coiled

4шт.

Выбрано товаров: 37
