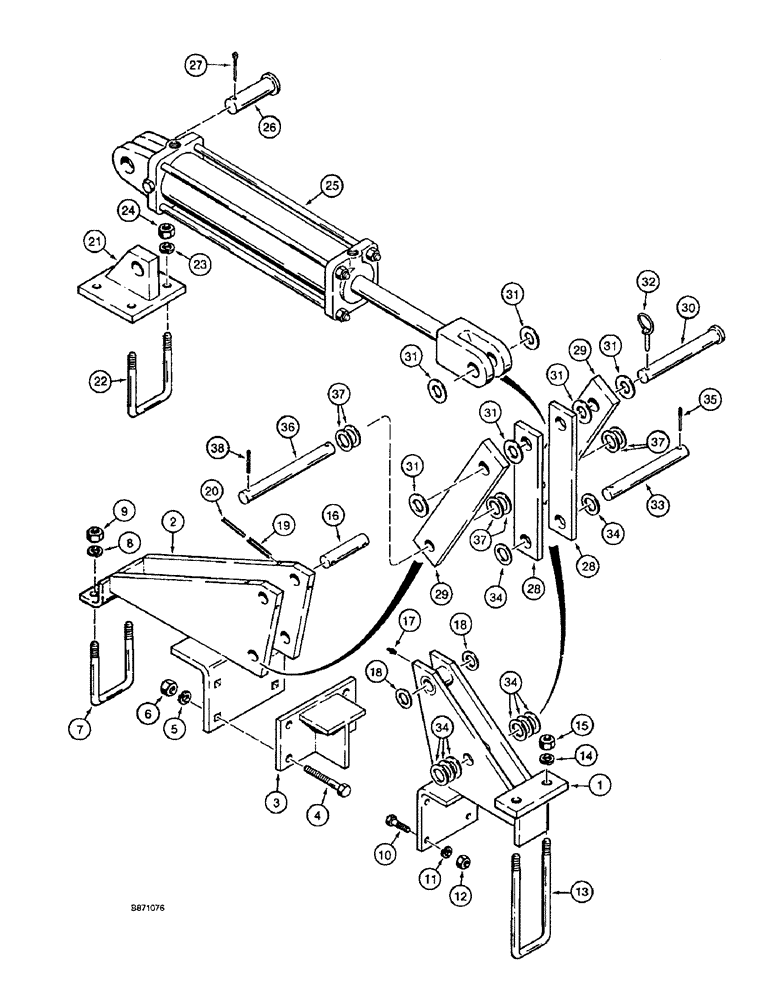

Запчасти Case IH 4900 (9-38) - SECONDARY WING LIFT AND HINGES - REAR, 44 FOOT (13.5 M) WIDE (09) - CHASSIS/ATTACHMENTS

1

1284379C1

HINGE

wing frame, outer

2шт.

2

1980891C1

HINGE

wing frame, inner

2шт.

3

810612C1

STOP

frame

2шт.

4

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

8шт.

7

811655C1

BOLT,5/8" - 11 x 5 1/2"

U, 5/8 inch NC, inner

2шт.

8

492-11062

BEARING WASHER,5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

8шт.

13

1334025C1

U-BOLT

BOLT "U" outer

2шт.

14

492-11062

BEARING WASHER,5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

16

1284375C2

PIN

hinge pivot

2шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

18

396-11106

WASHER,1 1/16" x 2" x .134", HDN

flat, 1-1/16 x 2 x 1/8 inch, hardened

4шт.

19

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

5/16" x 2 1/2", Slotted

4шт.

20

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

3/16" x 2 1/2", Slotted

4шт.

21

1284385C1

SUPPORT ASSY.

secondary wing lift cylinder

2шт.

22

811655C1

BOLT,5/8" - 11 x 5 1/2"

U, 5/8 inch NC, inner

4шт.

23

492-11062

BEARING WASHER,5/8"

8шт.

24

425-1010

NUT,5/8"-11, G5

8шт.

25

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 3-1/2 (89) ID x 16 inch (406 mm) stroke, parts list Figure 8-28

2шт.

25

1272149C92R

REMAN-HYD CYLINDER

4900 CASE IH VIBRA TILLER, ASSEMBLY (9/87-)

2шт.

25

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

26

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

1-1/4 x 3-1/4 inch, hardened

2шт.

27

32-1632

COTTER PIN,1/4" x 2"

2шт.

28

1284364C1

BAR

LINK outer hinge to cylinder rod end

4шт.

29

1284391C1

BAR

LINK hinge to cylinder rod end

4шт.

30

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

1-1/4 x 6-1/4 inch, hardened

2шт.

31

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32 x 2 x 1/8 inch

12шт.

32

A30338

PIN

lock

2шт.

33

854527C1

PIN

wing lift

2шт.

34

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

16шт.

35

38-31632

PIN,1/4" x 2", Coiled

1/4" x 2", Coiled

4шт.

36

811962C1

PIN

lift pivot

2шт.

37

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

12шт.

38

38-31632

PIN,1/4" x 2", Coiled

1/4" x 2", Coiled

4шт.
