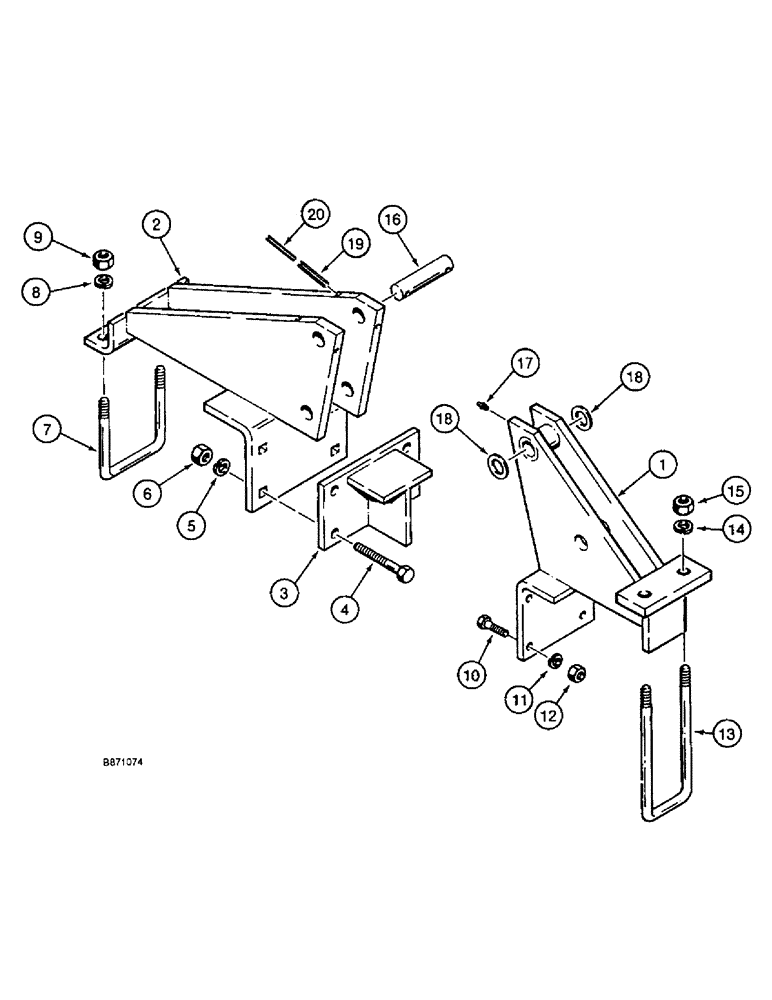

Запчасти Case IH 4900 (9-34) - SECONDARY WING LIFT AND HINGES - FRONT, 44 FOOT (13.5 M) (09) - CHASSIS/ATTACHMENTS

1

1284379C1

HINGE

wing frame outer

2шт.

2

1980891C1

HINGE

wing frame inner

2шт.

3

810612C1

STOP

frame

2шт.

4

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

8шт.

7

811655C1

BOLT,5/8" - 11 x 5 1/2"

U, 5/8 inch NC, inner

2шт.

8

492-11062

BEARING WASHER,5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

8шт.

13

1334025C1

U-BOLT

BOLT "U" outer

2шт.

14

492-11062

BEARING WASHER,5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

16

1284375C2

PIN

hinge pivot

2шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

18

396-11106

WASHER,1 1/16" x 2" x .134", HDN

flat, 1-1/16 x 2 x 1/8 inch, hardened

4шт.

19

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

5/16" x 2 1/2", Slotted

4шт.

20

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

3/16" x 2 1/2", Slotted

4шт.
