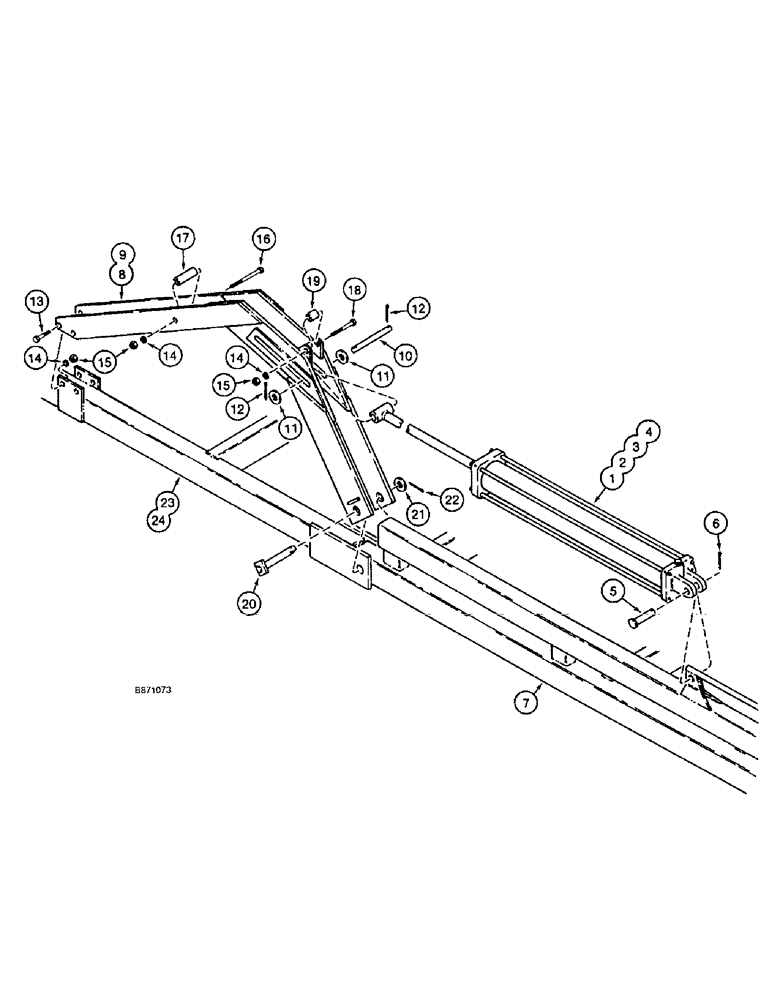

Запчасти Case IH 4900 (9-32) - PRIMARY WING LIFT AND HINGE, 37 FOOT (11.4 M) THROUGH 52 (09) - CHASSIS/ATTACHMENTS

1

1285753C94

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, 37 ft (11.4 m) through 41 ft (12.5 m) wide, Vibra Tillers, Iowa Industrial Hydraulics, parts list figure 8-20, if used

2шт.

2

810665C91

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, 37 ft (11.4 m) through 41 ft (12.5 m) wide, Vibra Tillers, Prince, parts list figure 8-22, if used

2шт.

3

224795C92

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke, 44 ft (13.5 m) through 52 ft (15.8 m) wide, Vibra Tillers, Iowa Industrial Hydraulics, parts list figure 8-24, if used

2шт.

4

810662C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke, 44 ft (13.5 m) through 52 ft (15.8 m) wide, Vibra Tillers, Prince, parts list figure 8-24, if used

2шт.

5

810751C1

PIN

1 x 3-1/2 inch to main frame

2шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

7

1336630C91

FRAME

ASSEMBLY, main, rear, parts list figure 9-16

1шт.

8

810550C2

SUPPORT

primary wing lift front left hand and right hand rear

2шт.

9

810551C2

SUPPORT

primary wing lift front right hand and left hand rear

2шт.

10

813192C1

PIN

cylinder rod mounting

2шт.

11

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

4шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

13

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

14

492-11062

BEARING WASHER,5/8"

12шт.

15

425-1010

NUT,5/8"-11, G5

12шт.

16

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

2шт.

17

810736C1

SPACER

4-11/16 inch (106 mm) long, wing lift support (106 mm) thick

2шт.

18

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

plated

2шт.

19

810737C1

SPACER

2-3/8 inch (60 mm) long wing lift support

2шт.

20

811965C2

PIN

rear hinge

2шт.

21

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

flat, 1-17/32 x 2-1/4 x 1/16 inch

2шт.

22

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

23

1284498C2

FRAME

primary wing, left hand, 37 ft (11.4 m) through 52 ft (15.8 m) wide, Vibra Tillers, parts list figure 9-20

1шт.

24

1284499C2

FRAME

primary wing, right hand, 37 ft (11.4 m) through 52 ft (15.8 m) wide, Vibra Tillers, parts list figure 9-20

1шт.
