Запчасти Case IH 4900 (9-30) - PRIMARY WING LIFT AND HINGE, 31 FOOT (9.4 M) THROUGH 34 FOOT (09) - CHASSIS/ATTACHMENTS

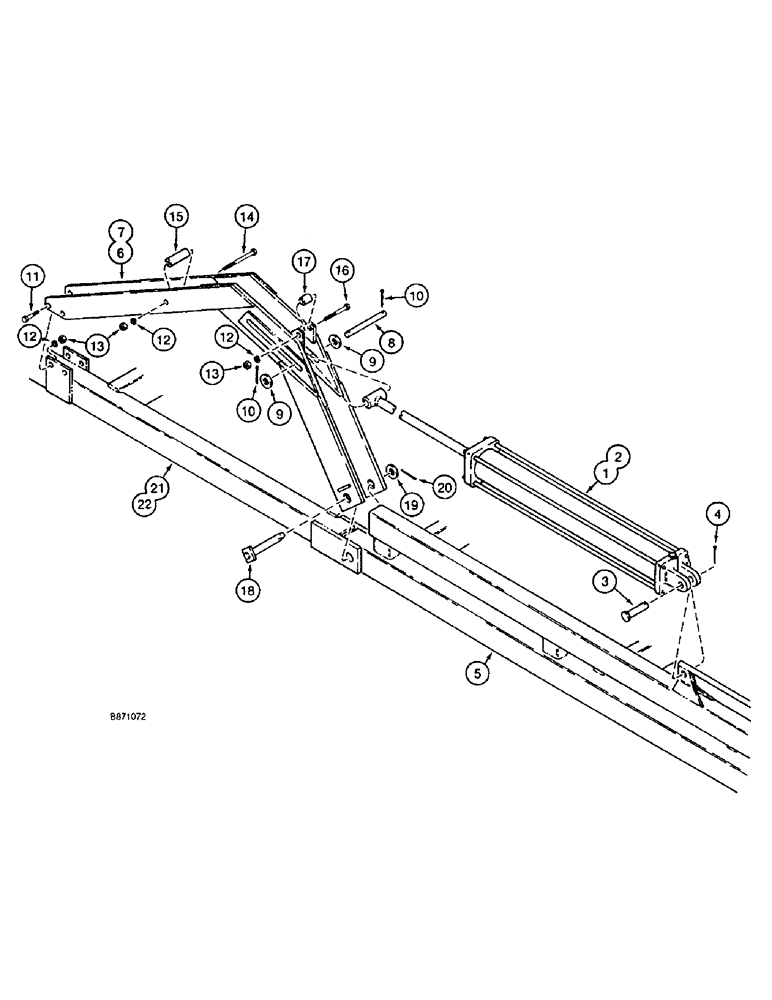

Схема запчастей Case IH 4900 - (9-30) - PRIMARY WING LIFT AND HINGE, 31 FOOT (9.4 M) THROUGH 34 FOOT (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

1285753C94

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-20, if used

2шт.

2

810665C91

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, Prince, parts list figure 8-22, if used

2шт.

3

810751C1

PIN

1 x 3-1/2 inch to main frame

2шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

5

1336630C91

FRAME

ASSEMBLY, main, rear parts list figure 9-16

1шт.

6

810550C2

SUPPORT

primary wing lift front left hand and right hand rear

2шт.

7

810551C2

SUPPORT

primary wing lift front right hand and left hand rear

2шт.

8

813192C1

PIN

cylinder rod mounting

2шт.

9

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

4шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

11

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

12

492-11062

BEARING WASHER,5/8"

12шт.

13

425-1010

NUT,5/8"-11, G5

12шт.

14

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

2шт.

15

810736C1

SPACER

4-11/16 inch (106 mm) long wing lift support (106 mm) thick

2шт.

16

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8 NC x 4 inch

2шт.

17

810737C1

SPACER

2-3/8 inch (60 mm) long wing lift support

2шт.

18

811965C2

PIN

rear hinge

2шт.

19

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

flat, 1-17/32 x 2-1/4 x 1/16 inch

2шт.

20

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

21

91120C1

FRAME ASSY

primary wing, left hand, parts list figure 9-18

1шт.

22

91121C1

FRAME ASSY

primary wing, right hand, 31 ft (9.4 m) through 34 ft (11.5 m) wide Vibra Tillers, parts list figure 9-18

1шт.

Выбрано товаров: 22
