Запчасти Case IH 4900 (9-24) - FRAME EXTENSIONS (09) - CHASSIS/ATTACHMENTS

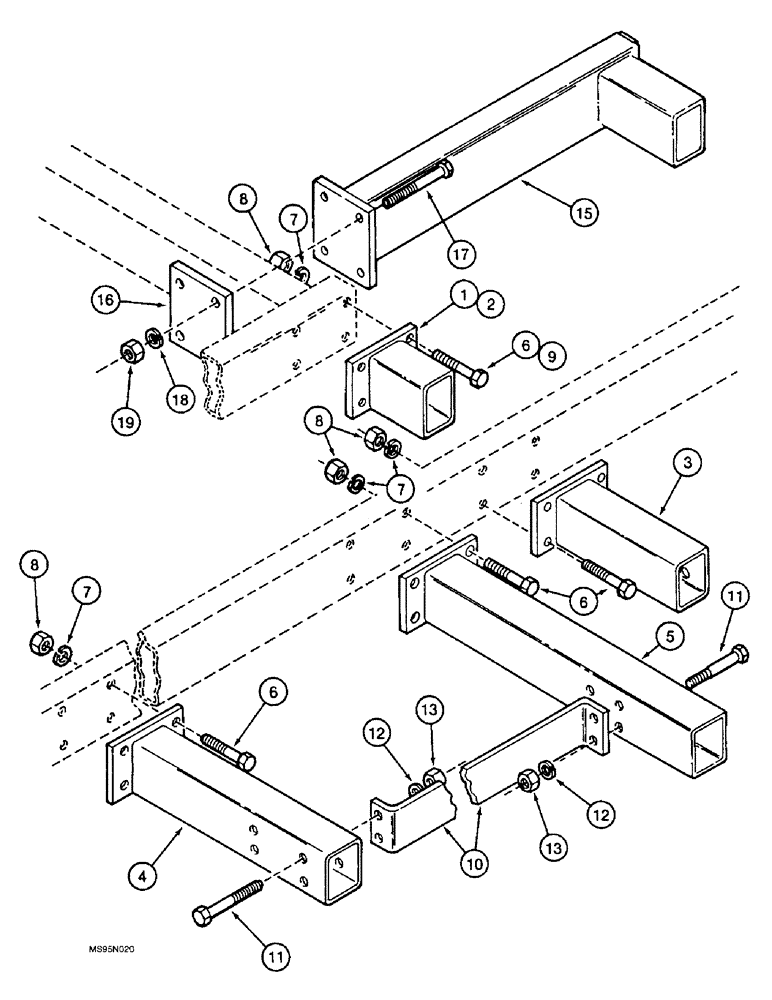

Схема запчастей Case IH 4900 - (9-24) - FRAME EXTENSIONS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

1333797C1

TUBE,127 mm Length

EXTENSION frame, 5 inch (127 mm) long

1шт.

2

811363C1

EXTENSION

EXTENSION frame, 7 inch (178 mm) long

1шт.

3

811367C2

TUBE ASSY.,279.4 mm Length

EXTENSION frame, 11 inch (279 mm) long

1шт.

4

811668C2

TUBE ASSY.,457.2 mm Length

EXTENSION frame, 18 inch (439 mm) long

1шт.

5

811669C3

TUBE ASSY.,635 mm Length

EXTENSION frame, 25 inch (639 mm) long

1шт.

6

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

If used

4шт.

10

810621C1

BRACE

frame extension, 28-1/2 inch (724 mm) long, straight

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

13

425-1010

NUT,5/8"-11, G5

8шт.

15

854625C1

EXTENSION

frame, L shaped

2шт.

16

811356C1

BAR

BRACKET extension mounting

2шт.

17

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch

8шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

19

425-1010

NUT,5/8"-11, G5

8шт.

Выбрано товаров: 18
