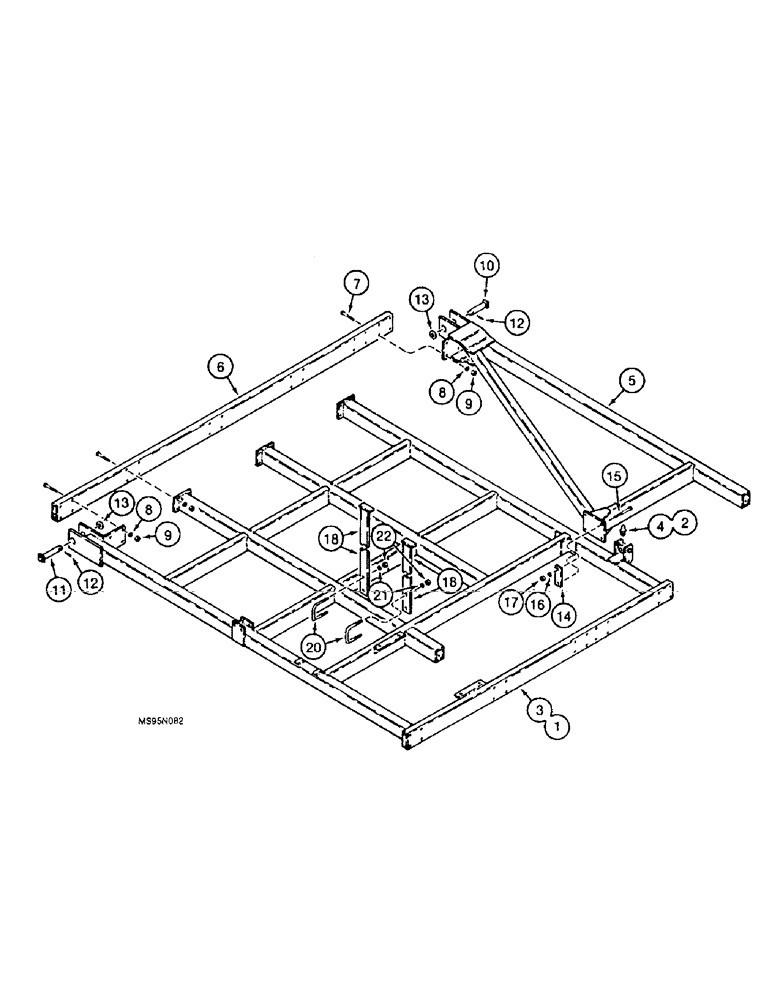

Запчасти Case IH 4900 (9-20) - PRIMARY WING FRAME, 37 FOOT (11.4 M) THROUGH 52 FOOT (15.8 M (09) - CHASSIS/ATTACHMENTS

1

1284498C2

FRAME

primary wing, left hand, 37 ft (11.4 m) through 52 ft (15.8 m) wide Vibra Tillers

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

1284499C2

FRAME

primary wing, right hamd, 37 ft (11.4 m) through 52 ft (15.8 m) wide Vibra Tillers

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

1284233C1

FRAME ASSY

primary wing, front hinge, 37 ft (11.4 m) through 52 ft (15.8 m) wide Vibra Tillers

2шт.

6

810522C3

TUBE,3218 mm Length

primary wing, inner connecting, 37 ft (11.4 m) throught 52 ft (15.8 m) wide Vibra Tillers

2шт.

7

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

40шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

40шт.

9

425-118

NUT,1/2"-20, G5

40шт.

10

811968C1

PIN

clevis front, primary wing, frame to main frame

2шт.

11

811965C2

PIN

rear, primary wing frame to main frame

2шт.

12

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

4шт.

13

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

flat, 1-17/32 x 2-1/4 x 1/16 inch

4шт.

14

811944C1

BAR

PLATE front hinge frame

4шт.

15

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

hex, 1/2 NC x 5-1/2 inch

8шт.

16

492-11062

BEARING WASHER,5/8"

8шт.

17

425-1010

NUT,5/8"-11, G5

2шт.

18

97597C1

SUPPORT ASSY.

secondary wing frame stop, used on 47 ft (41.5 m) through 52 ft (15.8 m) wide Vibra Tillers only

2шт.

20

812659C1

BOLT,5/8" - 11 x 4.4"

U, support retaining

2шт.

21

492-11062

BEARING WASHER,5/8"

4шт.

22

425-1010

NUT,5/8"-11, G5

4шт.
