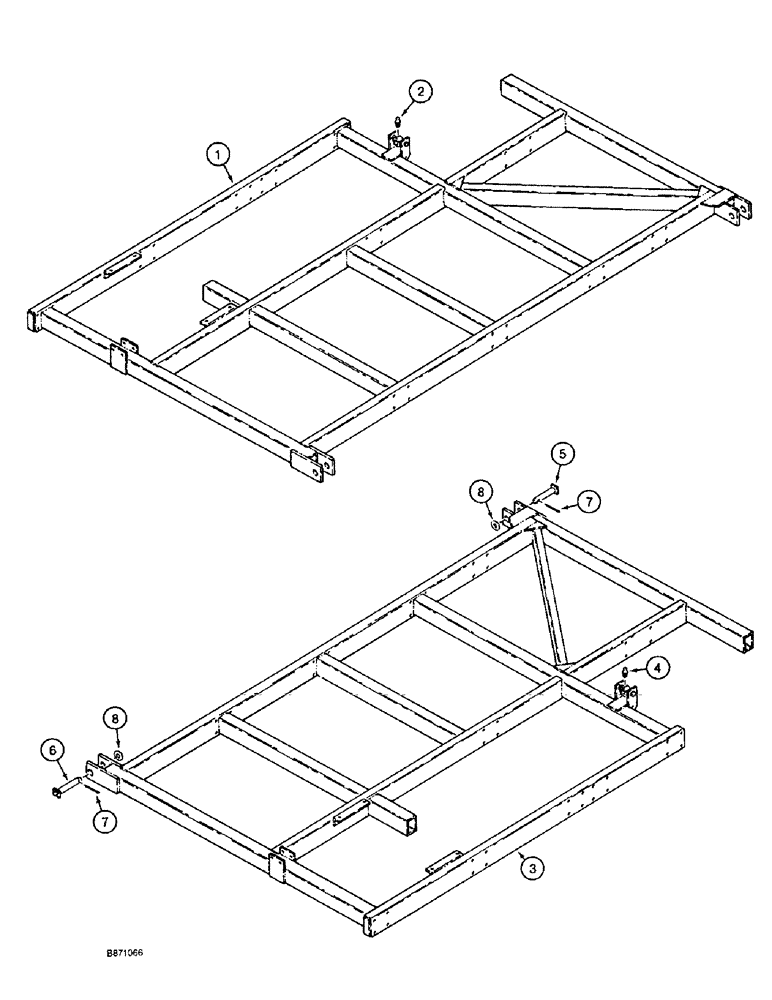

Запчасти Case IH 4900 (9-18) - PRIMARY WING FRAME, 31 FOOT (9.4 M) THROUGH 34 FOOT (10.5 M) (09) - CHASSIS/ATTACHMENTS

1

91120C1

FRAME ASSY

primary wing, left hand

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

91121C1

FRAME ASSY

primary wing, right hand, 31 ft (9.4 m) through 34 ft (10.5 m) wide Vibra Tillers

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

811968C1

PIN

clevis front, primary wing, frame to main frame

4шт.

6

811965C2

PIN

rear, primary wing frame to main frame

4шт.

7

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

4шт.

8

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

flat, 1-17/32 x 2-1/4 x 1/16 inch

4шт.
