Запчасти Case IH 4900 (9-16) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

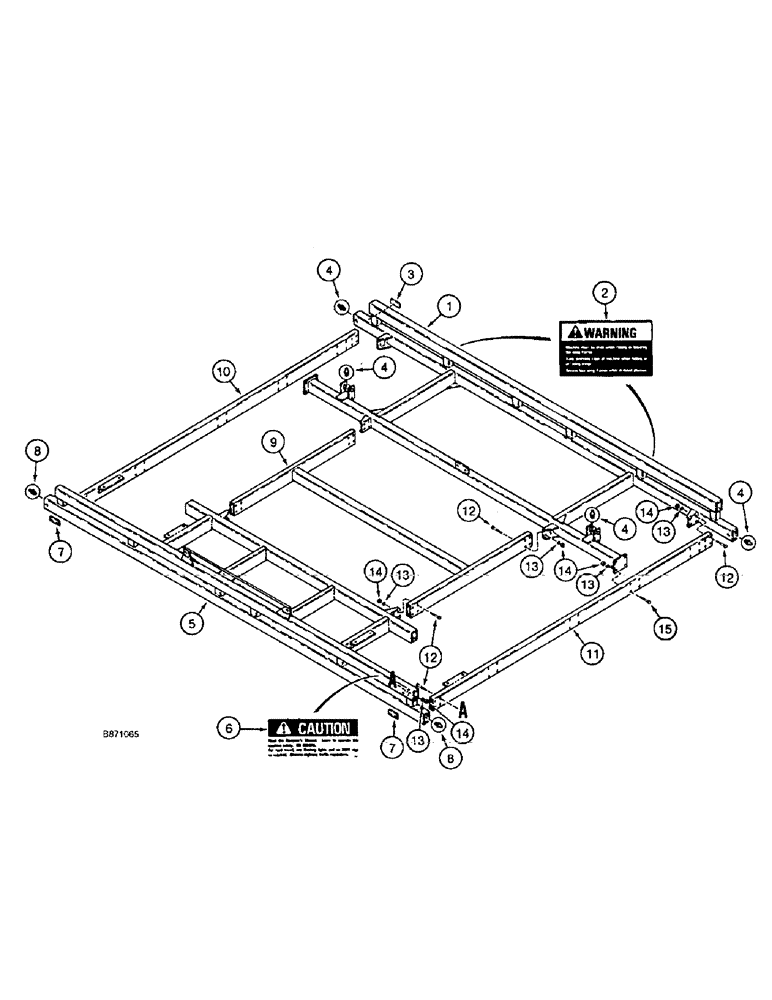

Схема запчастей Case IH 4900 - (9-16) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1336629C91

FRAME

ASSEMBLY, main, front

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME main, front, order 1336629C91 asembly

1шт.

2

810170C2

PRODUCT GRAPHIC

DECAL Warning, machine must be level

2шт.

3

1284365C2

REFLECTOR

amber front, left hand side

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

1336630C91

FRAME

ASSEMBLY, main, rear

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME main, rear, order 1336630C91 assembly

1шт.

6

220321A1

WARNING DECAL

Warning, read the operators manual

2шт.

7

1284374C1

REFLECTOR,Reflector Red

red rear

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

810685C1

FRAME

inner connecting

1шт.

10

1284427C1

TUBE,673 mm Length

FRAME outer connecting, left hand

1шт.

11

1284428C1

TUBE

FRAME outer connecting, right hand

1шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

32шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

40шт.

14

425-118

NUT,1/2"-20, G5

40шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

Выбрано товаров: 17
