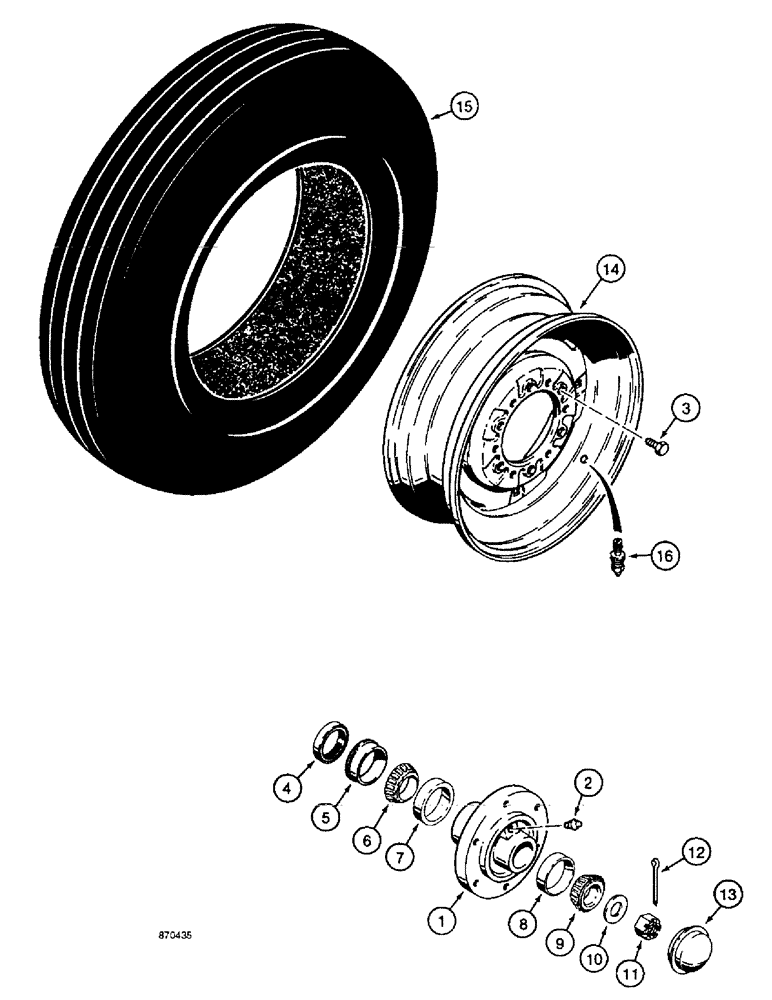

Запчасти Case IH 4900 (9-14) - PNEUMATIC GAUGE HUBS, WHEELS, AND TIRES (09) - CHASSIS/ATTACHMENTS

1

810087C2

HUB

wheel, six bolt mount gauge

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

3

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch wheel mounting

12шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

5

472222R1

SLEEVE

oil seal

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller hub, inner

2шт.

7

651817R1

BEARING CUP

CUP tapered roller bearng

2шт.

8

651814R1

BEARING CUP

tapered roller hub, outer

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller hub, outer

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

13

B13280

HUB CAP

wheel

2шт.

14

T53527

WHEEL

15 x 5 inch (381 mm) x 5 inch (127 mm)

2шт.

15

REF

INSTRUCTION

TIRE, 7.60 - 15, 6 ply rating, purchase locally

2шт.

16

810769C1

VALVE

inflation

2шт.
