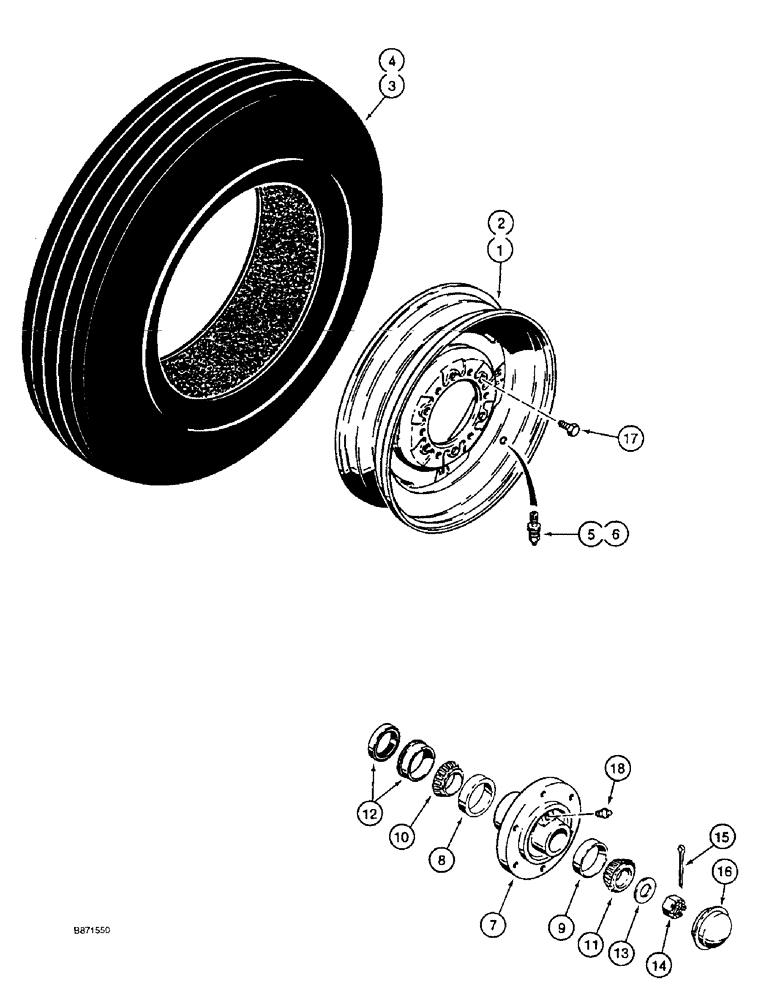

Запчасти Case IH 4900 (9-10) - MAIN FRAME HUB, WHEELS, AND TIRES (09) - CHASSIS/ATTACHMENTS

1

481344R91

WHEEL

14 (356) x 8 inch (203 mm) used on 31 ft (9.4 m) - 41ft (12.5 m) wide cultivators

4шт.

2

A57879

RIM

WHEEL, 15 (381) x 8 inch (203 mm) used on 44 ft (13.4 m) - 52 ft (15.8 m) wide cultivators

4шт.

3

REF

INSTRUCTION

TIRE, 9.5L - 14, 6 ply rating, purchase locally, used on 31 ft ((.4 m) - 41 ft (12.5 m) wide cultivators, if used

4шт.

4

REF

INSTRUCTION

TIRE, 9.5L - 15, 8 ply rating, purchase locally, used on 44 ft (13.4 m) - 52 ft (15.8 m) wide cultivators, if used

4шт.

5

810768C1

VALVE

inflation used with 9.5L - 14, 6 ply rating tires, if used

4шт.

6

810769C1

VALVE

inflation used with 9.5L - 15, 8 ply rating tires, if used

4шт.

606468R21

HUB

ASSEMBLY, wheel

4шт.

7

NSS

NOT SOLD SEPARAT

HUB axle, main frame, order 606468R21 assembly

1шт.

8

663558R1

BEARING CUP

tapered roller, 2-57/64 inch O.D. hub, inner

1шт.

9

651817R1

BEARING CUP

CUP tapered roller, outer

1шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch ID hub, inner

4шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller hub, outer

4шт.

12

606556R91

OIL SEAL

oil, with sleeve

4шт.

13

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special, hardened

4шт.

14

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

4шт.

16

663906R1

CAP

wheel hub no longer used, replaced by 224066C1 cap, Ref. 16 below

4шт.

16

224066C1

HUB CAP

4шт.

17

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch wheel mounting

24шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

15

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

4шт.
