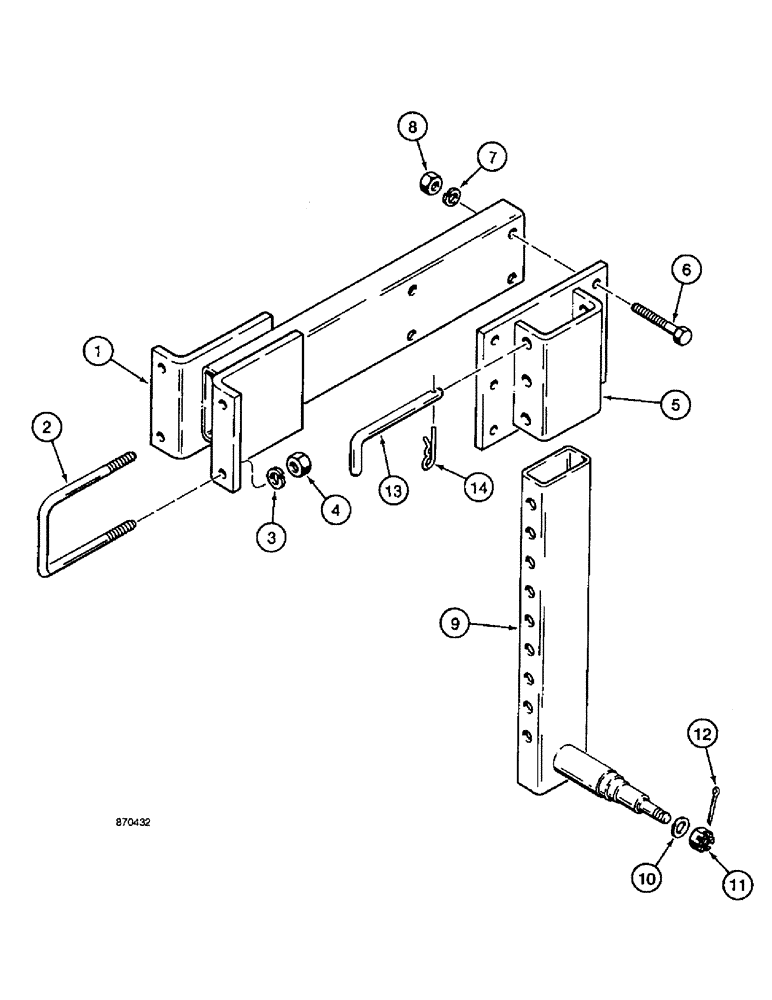

Запчасти Case IH 4900 (9-08) - PNEUMATIC GAUGE WHEEL MOUNTING (09) - CHASSIS/ATTACHMENTS

1

812341C1

TUBE,645 mm Length

gauge wheel mounting used on secondary wing, if used

2шт.

2

812659C1

BOLT,5/8" - 11 x 4.4"

U, used on secondary wing, if used

4шт.

3

492-11062

BEARING WASHER,5/8"

Used on secondary wing, if used

8шт.

4

425-1010

NUT,5/8"-11, G5

Used on secondary wing, if used

8шт.

5

1284351C1

SUPPORT

BRACKET axle mounting

2шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

7

492-11062

BEARING WASHER,5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

811542C92

AXLE

ASSEMBLY, gauge wheel

2шт.

9

NSS

NOT SOLD SEPARAT

AXLE, gauge wheel, order 811542C92 assembly

1шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

13

811951C1

PIN

retaining

2шт.

14

591107R1

COTTER PIN

cotter, hair

2шт.
