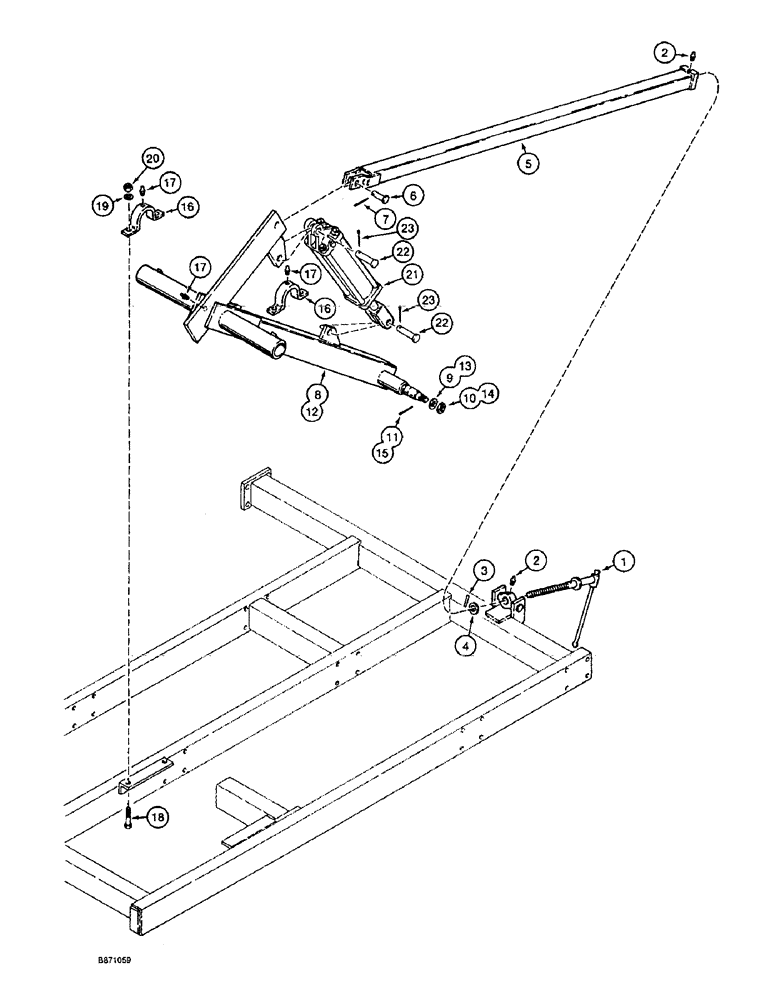

Запчасти Case IH 4900 (9-06) - SECONDARY WING FRAME AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

truss rod

2шт.

1a

1973010C1

RETAINER

spring not shown, used on 1284398C2 rod, Ref. 1

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

38-32432

PIN,3/8" x 2", Coiled

truss rod to trunnion 3/8" x 2", Coiled

2шт.

4

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32 x 2 x 1/8 inch

2шт.

5

1284466C1

TUBE,1440 mm Length

LINK rockshaft

2шт.

6

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2 truss rod tube to rockshaft

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

1334062C91

ROCKSHAFT

ASSEMBLY, secondary wing frame

1шт.

8

NSS

NOT SOLD SEPARAT

ROCKSHAFT right hand, secondary wing frame depth control, order 1334062C91assembly

1шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

11

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

1334061C91

ROCKSHAFT

ASSEMBLY, secondary wing frame

1шт.

12

NSS

NOT SOLD SEPARAT

ROCKSHAFT left hand, secondary wing frame depth control, order 1334061C91 assembly

1шт.

13

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

14

425-1312

SLOTTED NUT,3/4"-16, G5

hex, slotted, 3/4 inch NF

1шт.

15

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

16

811038C2

CLAMP

rockshaft

4шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

18

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

19

492-11062

BEARING WASHER,5/8"

8шт.

20

425-1010

NUT,5/8"-11, G5

8шт.

21

1282324C93

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke, parts list Figure

2шт.

84255910R

REMAN-HYD CYLINDER

4900 (9/87-), Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

22

810751C1

PIN

1 x 3-1/2 inch

4шт.

23

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.
