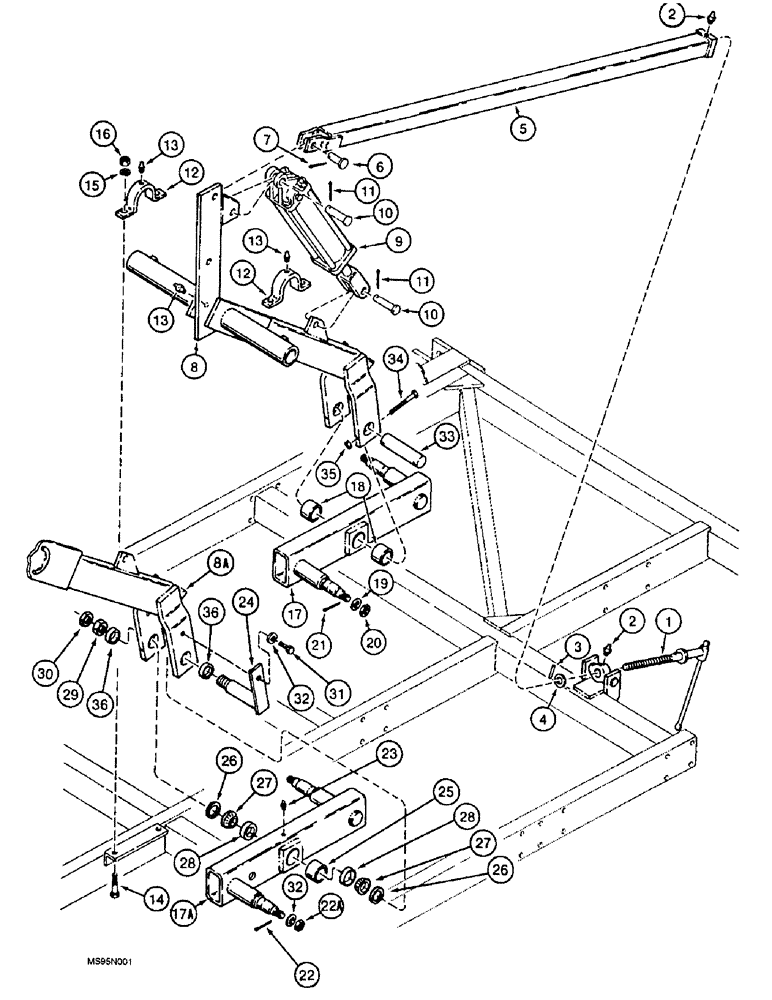

Запчасти Case IH 4900 (9-04) - PRIMARY WING FRAME AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

truss rod

2шт.

1a

1973010C1

RETAINER

spring not shown, used on 1284398C2 rod, Ref. 1

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

38-32432

PIN,3/8" x 2", Coiled

truss rod to trunnion 3/8" x 2", Coiled

2шт.

4

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

2шт.

5

1284466C1

TUBE,1440 mm Length

LINK rockshaft

2шт.

6

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2 truss rod tube to rockshaft

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

8

1284449C1

ROCKSHAFT

wing frame prior to S/N JAG0067477

1шт.

8a

135738A1

ROCKSHAFT

wing frame S/N JAG0067477 and after

1шт.

9

1282328C92

CYLINDER ASSY.

3-3/4 (95) ID x 8 inch (203 mm) stroke

2шт.

9

87423766R

REMAN-HYD CYLINDER

3-3/4 (95) ID x 8 inch (203 mm) stroke parts list figure 8-16

2шт.

9

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

10

810751C1

PIN

1 x 3-1/2 inch

4шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

12

811038C1

CLAMP

rockshaft

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

14

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

15

492-11062

BEARING WASHER,5/8"

8шт.

16

425-1010

NUT,5/8"-11, G5

8шт.

17

1284065C93

TUBE NUT

AXLE, main frame prior to S/N JAG0067477

2шт.

17a

103073A1

TUBE,434 mm Length

AXLE, main frame, S/N JAG0067477 and after

2шт.

18

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

axle, use B17197 Loctite to install bushing, see below, prior to S/N JAG0067477

2шт.

19

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch, prior to S/N JAG0067477

2шт.

20

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF prior to S/N JAG0067477

2шт.

21

432-824

COTTER PIN,1/8" x 1 1/2"

Prior to S/N JAG0067477

2шт.

22

432-828

COTTER PIN,1/8" x 1 3/4"

S/N JAG0067477 and after

2шт.

22a

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC, S/N JAG0067477 and after

2шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

S/N JAG0067477 and after

1шт.

24

103069A2

PIN

pivot, S/N JAG0067477 and after

2шт.

25

107921A1

TUBE

spacing, S/N JAG0067477 and after

1шт.

26

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer, S/N JAG0067477 and after

2шт.

27

8050528

ROLLER BEARING

tapered roller, S/N JAG0067477 and after

2шт.

28

453012R1

BEARING CUP

tapered roller, S/N JAG0067477 and after

2шт.

29

231-41124

LOCK NUT,1 1/2"-6, GB

hex, self locking, 1-1/2 inch NC S/N JAG0067477 and after

1шт.

30

131-1419

NUT,1 1/2"-6, Thin

hex, thin, 1-1/2 inch NC S/N JAG0067477 and after

1шт.

31

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

BOLT hex, 3/4 NC x 1 inch s/N JAG0067477 and after

1шт.

32

492-11075

LOCK WASHER,3/4"

S/N JAG0067477 and after 3/4"

3шт.

33

1279363C2

PIN,50.8mm OD x 165mm L

pivot rockshaft to axle, prior to S/N JAG0067477

2шт.

34

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

Prior to S/N JAG0067477

4шт.

35

232-4136

LOCK NUT,3/8"-16, GC

Prior to S/N JAG0067477

4шт.

36

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

1-1/2 ID x 1-3/4 O.D. x 3/4 inch S/N JAG0067477 and after

2шт.

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

LOCTITE RC 680 2 oz. (50 ml)

1шт.
