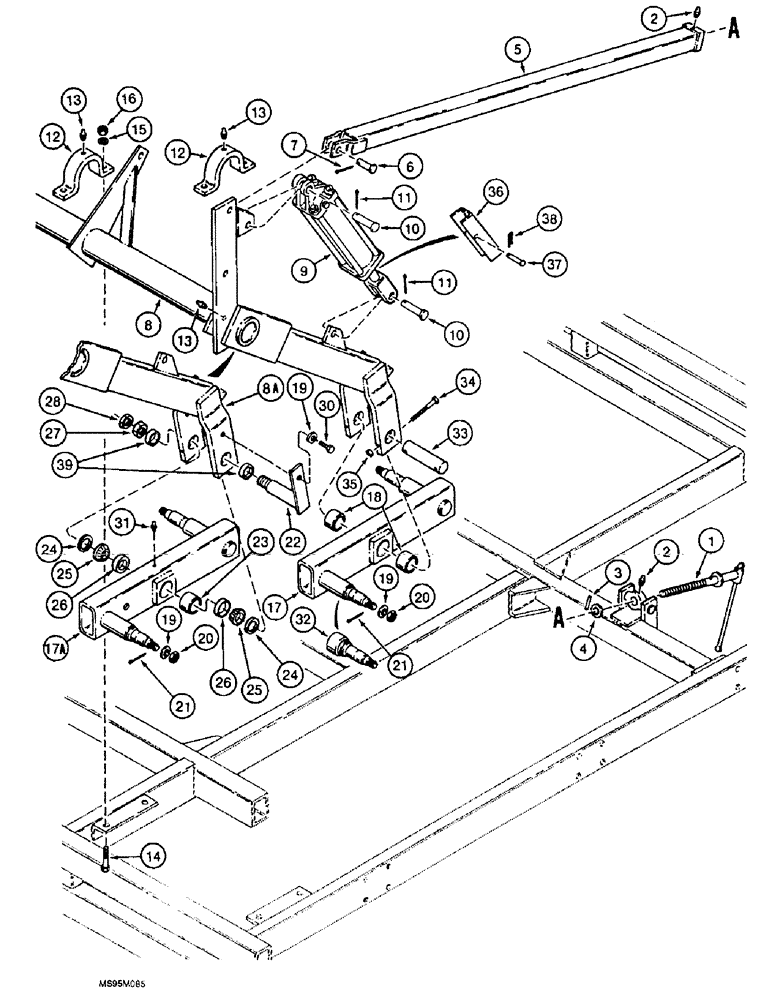

Запчасти Case IH 4900 (9-02) - MAIN FRAME AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

truss rod

2шт.

1a

1973010C1

RETAINER

spring, not shown, used on 1284398C2 rod, Ref. 1

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

38-32432

PIN,3/8" x 2", Coiled

truss rod to trunnion 3/8" x 2", Coiled

2шт.

4

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

2шт.

5

1284464C1

ROD

LINK rockshaft

2шт.

6

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/17 inch, grade 2 truss rod tube to rockshaft

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

8

1284452C2

SHAFT

ROCK, main frame (Before JAG0067477), Serial Range: -JAG0067477

1шт.

Weldment thru which ref. 33 goes is part number 1333835C1, 2 required.

1шт.

8a

135734A1

ROCKSHAFT

main frame (JAG0067477 and after), Serial Range: -JAG0067477

1шт.

The holed bar that ref. 33 goes through is a P/N 103094A1

1шт.

9

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke parts list figure 8-14

2шт.

9

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

9

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

10

810751C1

PIN

1 x 3-1/2 inch

4шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

12

97786C2

STRAP

CLAMP rockshaft

4шт.

416-1236

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2 1/4", Gr 8

rd. head, sq. neck, .75 ', 10 x 2.25 ', grd 8

1шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

14

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

8шт.

15

13146

SENSOR

WASHER lock, 3/4 inch

8шт.

16

329-1012

NUT,3/4"-10, G8

8шт.

17

1284064C92

TUBE NUT

AXLE, main frame, Serial Range: -JAG0067477

2шт.

17a

103073A1

TUBE,434 mm Length

AXLE, main frame, Start Serial: JAG0067477

2шт.

18

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

axle, use B17197 Loctite to install, see below, used on 1284064C92 Ref. 17 axle only

2шт.

19

492-11075

LOCK WASHER,3/4"

used on 1284064C92 Ref. 17 axle and 103073A1 Ref. 17A 3/4"

2шт.

20

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC used on 1284064C92 Ref. 17 axle and 103073A1 Ref. 17A

2шт.

21

432-828

COTTER PIN,1/8" x 1 3/4"

Used on 1284064C92 Ref. 17 axle and 103073A1 Ref. 17A

2шт.

22

103069A2

PIN

pivot rockshaft to axle, Start Serial: JAG0067477

2шт.

23

107921A2

TUBE

SPACER, 1-11/16 inch long, Start Serial: JAG0067477

2шт.

24

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer, Start Serial: JAG0067477

2шт.

25

8050528

ROLLER BEARING

tapered, roller, SEAL BUILT INTO BEARING, Start Serial: JAG0067477

2шт.

26

453012R1

BEARING CUP

tapered roller, Start Serial: JAG0067477

2шт.

27

231-41124

LOCK NUT,1 1/2"-6, GB

hex, self locking, 1-1/2 inch NC, Start Serial: JAG0067477

1шт.

28

131-1419

NUT,1 1/2"-6, Thin

hex, thin, 1-1/2 inch NC, Start Serial: JAG0067477

1шт.

30

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

BOLT hex, 3/4 NC x 1 inch, Start Serial: JAG0067477

1шт.

31

219-87

LUBE NIPPLE,1/4" - 28 NPTF

, Start Serial: JAG0067477

1шт.

32

95961C1

SPINDLE

axle welds to axle assembly, service replacement, Serial Range: -JAG0067477

2шт.

33

1279363C2

PIN,50.8mm OD x 165mm L

pivot rockshaft to axle, Serial Range: -JAG0067477

2шт.

34

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

, Serial Range: -JAG0067477

4шт.

35

232-4136

LOCK NUT,3/8"-16, GC

, Serial Range: -JAG0067477

4шт.

36

1337050C1

CHANNEL

transport lockout, Serial Range: -JAG0067477

2шт.

37

439-1544

HEADED PIN,5/16" x 2 3/4"

headed, 5/26 x 2-3/4 inch, grade 2, Serial Range: -JAG0067477

2шт.

38

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

locking, Serial Range: -JAG0067477

2шт.

39

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

1-1/2 ID x 1-3/4 O.D. x 3/4 inch, Start Serial: JAG0067477

2шт.

B17197

LOCTITE

RC680 2 oz. (50 ml), used for ref. 18

1шт.
