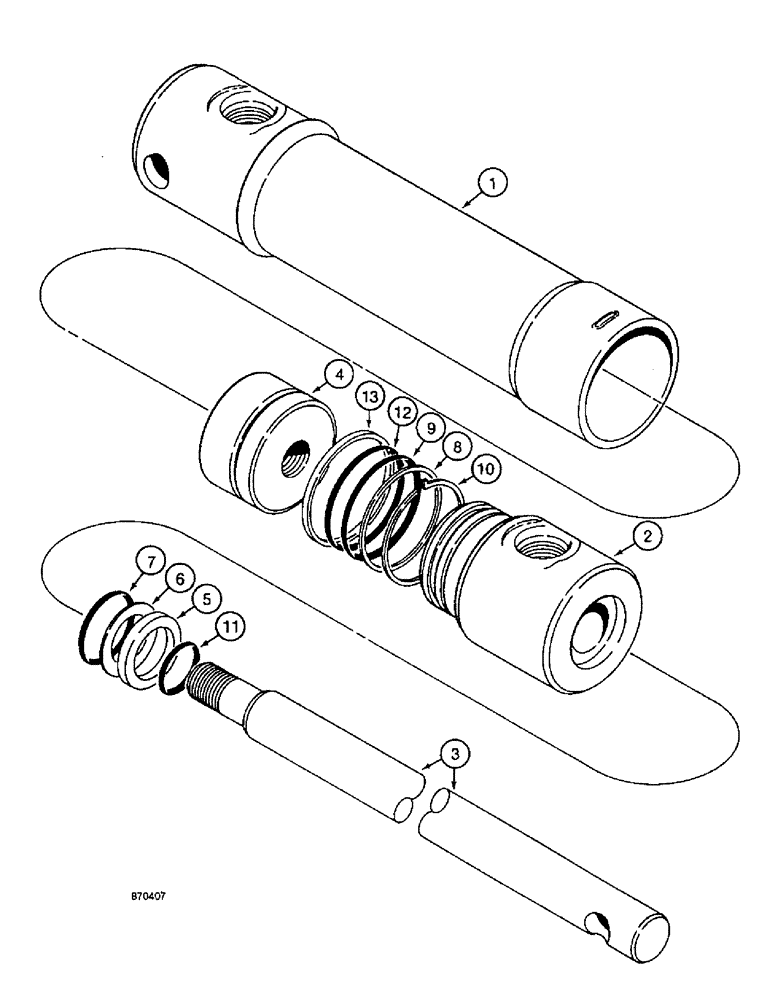

Запчасти Case IH 4900 (8-34) - AUTOMATIC WING TRANSPORT LOCK CYLINDER - 811998C91, 1-1/2 (08) - HYDRAULICS

811998C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder assembly

1шт.

2

812348C1

END

GLAND cylinder

1шт.

3

85262C1

ROD

ROD piston

1шт.

4

85263C1

PISTON

cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 812351C1

1шт.

6

NSS

NOT SOLD SEPARAT

RING back up, piston ring, o-ring

1шт.

Part of seal kit 812351C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of seal kit 812351C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING backup, gland, o-ring

1шт.

Part of seal kit 812351C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of seal kit 812351C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING locking, gland

1шт.

Part of seal kit 812351C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of seal kit 812351C1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 812351C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of seal kit 812351C1

1шт.

812351C1

SEAL KIT

seal, includes Refs. 5 through 13

1шт.
