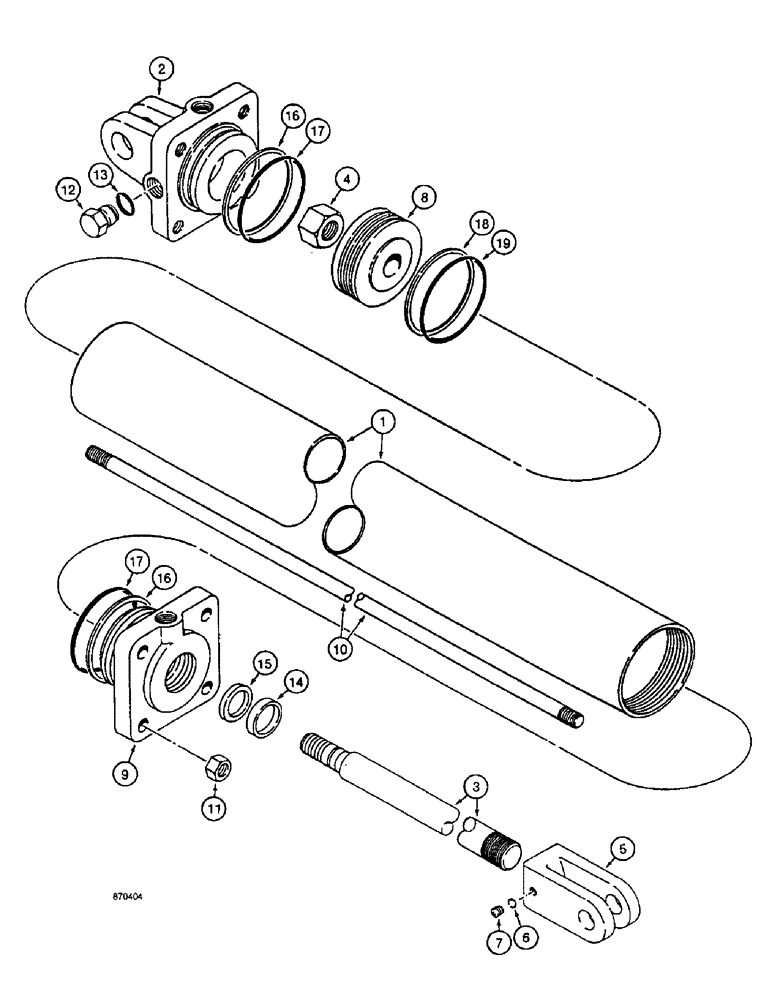

Запчасти Case IH 4900 (8-28) - SECONDARY WING LIFT CYLINDER - 1272149C92, 3-1/2" (89 MM) ID - IOWA INDUSTRIAL HYDRAULICS MANUFACTUR (08) - HYDRAULICS

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 3-1/2 (89) ID x 16 inch (406 mm) stroke

2шт.

1272149C92R

REMAN-HYD CYLINDER

4900 CASE IH VIBRA TILLER, ASSEMBLY (9/87-)

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1282334C1

HEAD

cylinder

1шт.

3

1282397C1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

145422C2

PISTON

cylinder

1шт.

9

1282335C1

HEAD

GLAND cylinder

1шт.

10

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT cylinder tie

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 79979C3

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 79979C3

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 79979C3

1шт.

16

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland o-ring

2шт.

Part of seal kit 79979C3

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of seal kit 79979C3

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit 79979C3

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 79979C3

1шт.

79978C2

SEAL KIT

includes Refs. 13 through 19, also includes 2 wear rings not used in this application.

1шт.
