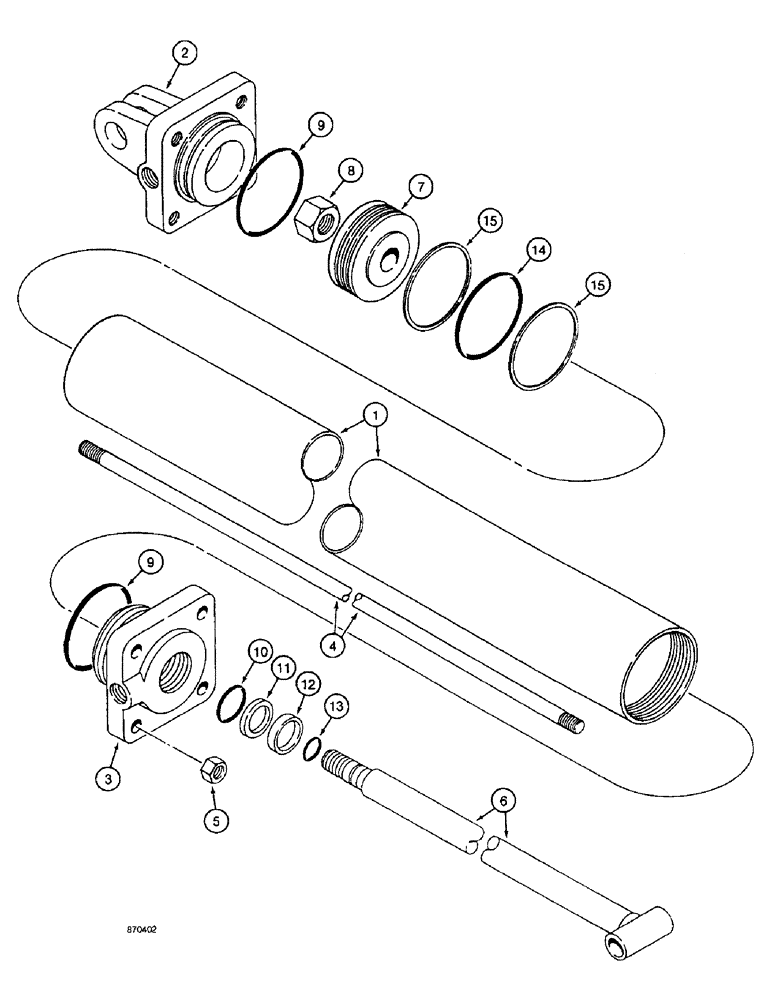

Запчасти Case IH 4900 (8-26) - PRIMARY WING LIFT CYLINDER - 810662C91, 4 INCH (102 MM) ID - PRINCE MANUFACTURED (08) - HYDRAULICS

810662C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

813374C1

END

CAP end cylinder

1шт.

3

813375C1

END

GLAND cylinder

1шт.

4

813377C1

ROD,5/8" - 18 x 39.0"

cylinder tie

4шт.

5

425-1110

NUT,5/8"-18, G5

4шт.

6

813378C1

ROD

piston

1шт.

7

813379C1

PISTON

cylinder

1шт.

8

231-46114

LOCK NUT,7/8"-14, GB

hex, self locking, 7/8 inch NF

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of seal kit 813389C91

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston rod, large

1шт.

Part of seal kit 813389C91

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup, large piston rod o-ring

1шт.

Part of seal kit 813389C91

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 813389C91

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston rod, small

1шт.

Part of seal kit 813389C91

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 813389C91

1шт.

15

NSS

NOT SOLD SEPARAT

RING backup, o-ring

2шт.

Part of seal kit 813389C91

1шт.

813389C91

SEAL KIT

seal, includes Refs. 9 through 15

1шт.
