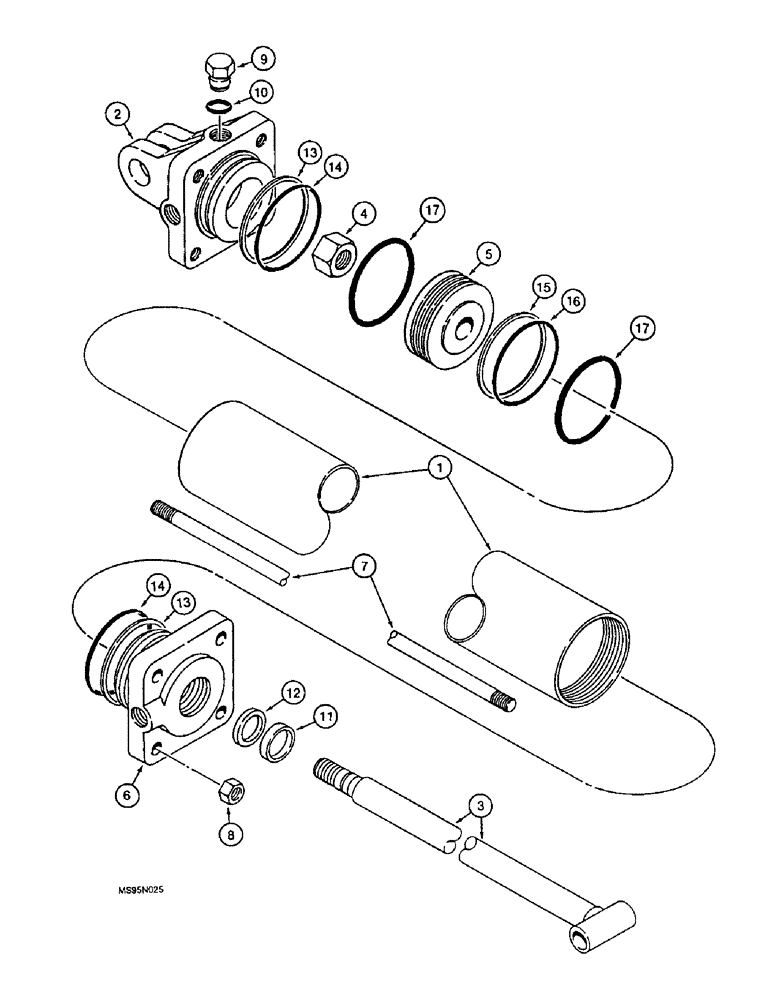

Запчасти Case IH 4900 (8-24) - PRIMARY WING LIFT CYLINDER - 224795C92, 4" (102 MM) ID - IOWA INDUSTRIAL HYDRAULICS MANUFACTURED (08) - HYDRAULICS

224795C92

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP end, cylinder

1шт.

3

1285955C1

ROD

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

92521C1

PISTON

cylinder

1шт.

6

1285881C1

HEAD

GLAND cylinder

1шт.

7

224798C1

BOLT,5/8" - 11 x 39.2"

cylinder tie

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 1272883C3

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 1272883C3

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 1272883C3

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland o-ring

2шт.

Part of seal kit 1272883C3

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of seal kit 1272883C3

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit 1272883C3

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 1272883C3

1шт.

17

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of seal kit 1272883C3

1шт.

1272883C3

SEAL KIT

KIT seal, includes Refs. 10 through 17

1шт.
