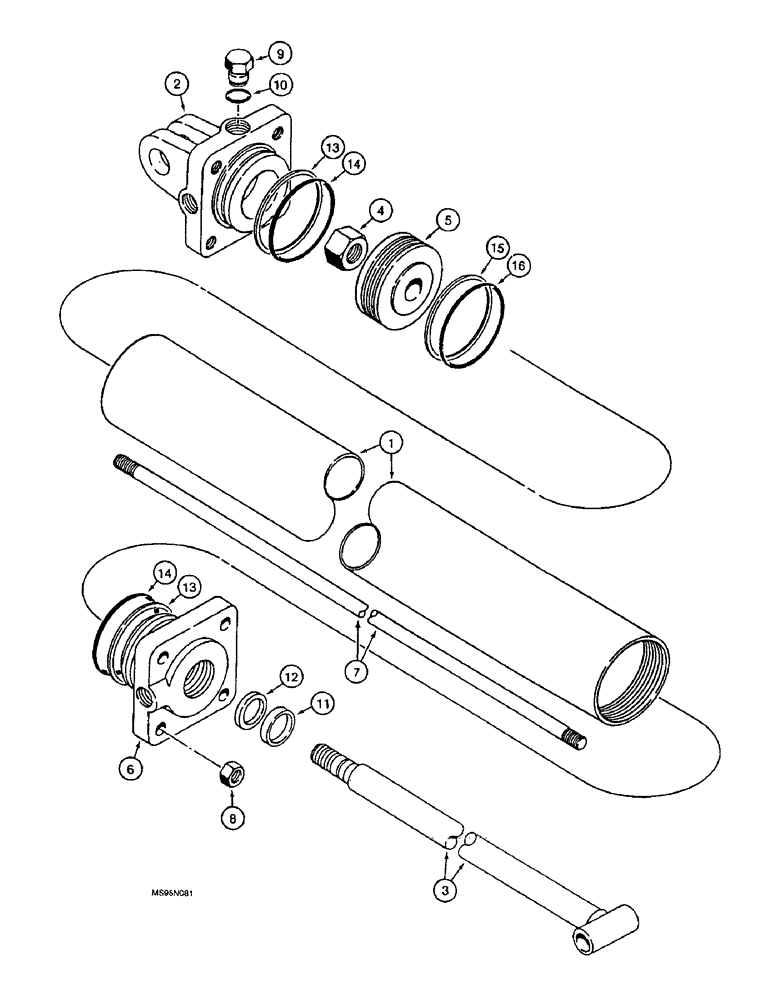

Запчасти Case IH 4900 (8-20) - PRIMARY WING LIFT CYLINDER - 1285753C94, 3-1/2" (89 MM) ID - IOWA INDUSTRIAL HYDRAULICS MANUFACTURED (08) - HYDRAULICS

1285753C94

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, primary wing lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272825C1

HEAD

cylinder, two ports

1шт.

3

224792C1

ROD

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145422C2

PISTON

cylinder

1шт.

6

1272826C1

HEAD

GLAND cylinder

1шт.

7

1285832C1

TIE-ROD

cylinder tie

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 84919C2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 84919C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland o-ring

2шт.

Part of seal kit 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of seal kit 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 84919C2

1шт.

84919C2

GASKET KIT

seal includes Refs. 10 through 16. Also includes 2 wear rings and 1 o-ring not used in this application

1шт.

Part of seal kit 84919C2

1шт.
