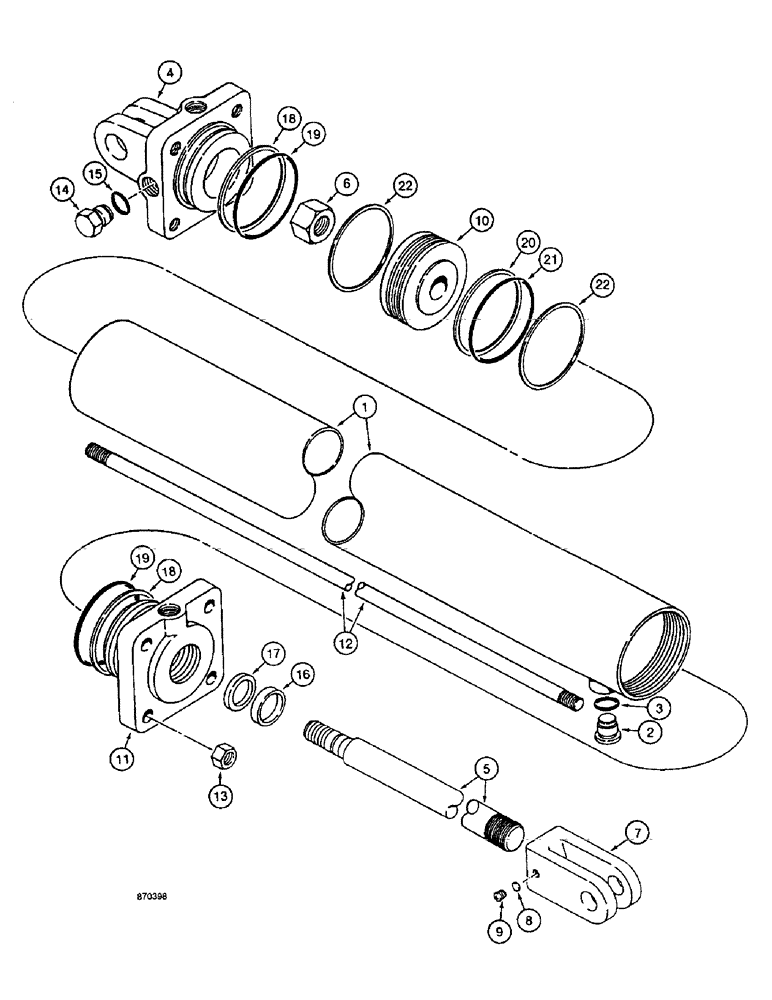

Запчасти Case IH 4900 (8-18) - SECONDARY WING FRAME DEPTH CONTROL CYLINDER (08) - HYDRAULICS

1282324C92

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke

2шт.

84255910R

REMAN-HYD CYLINDER

4900 (9/87-), Reman For New P/N 1282324C92

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

145424C2

HYD TUBE,3.5" ID, 10.167" Length

cylinder

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 84919C2

1шт.

4

1272825C1

HEAD

cylinder, two ports

1шт.

5

145231C1

PISTON ROD

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

1шт.

7

1267057C1

CLEVIS,3/8" - 16

rod end

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert nylon

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

10

85179C1

PISTON

cylinder

1шт.

11

1272826C1

HEAD

GLAND cylinder

1шт.

12

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD BOLT cylinder

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 84919C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland o-ring

2шт.

Part of seal kit 84919C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of seal kit 84919C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit 84919C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 84919C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of seal kit 84919C2

1шт.

84919C2

GASKET KIT

seal, includes Refs. 3 and 15 through 22

1шт.
