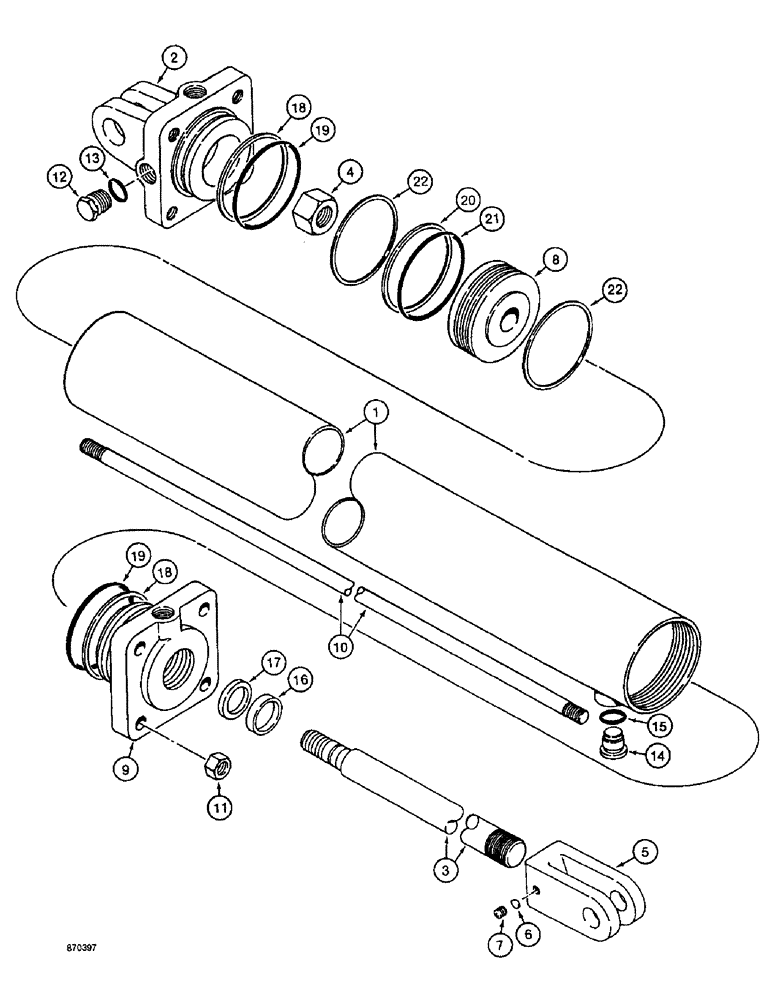

Запчасти Case IH 4900 (8-16) - PRIMARY WING FRAME DEPTH CONTROL CYLINDER (08) - HYDRAULICS

1282328C92

CYLINDER ASSY.

3-3/4 (95) ID x 8 inch (203 mm) stroke

2шт.

87423766R

REMAN-HYD CYLINDER

3-3/4 (95) ID x 8 inch (203 mm) stroke

2шт.

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

1

1978386C1

HYD TUBE

cylinder

1шт.

2

1285798C1

END

GLAND cylinder

1шт.

3

1267056C1

ROD

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

1267057C1

CLEVIS,3/8" - 16

rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

92520C1

PISTON

cylinder

1шт.

9

1285799C1

HEAD

GLAND cylinder

1шт.

10

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT cylinder tie

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 80115C2

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 80115C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 80115C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 80115C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland o-ring

2шт.

Part of seal kit 80115C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of seal kit 80115C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit 80115C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of seal kit 80115C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of seal kit 80115C2

1шт.

80115C2

SEAL KIT

KIT, includes Refs. 13 and 15 through 22

1шт.
