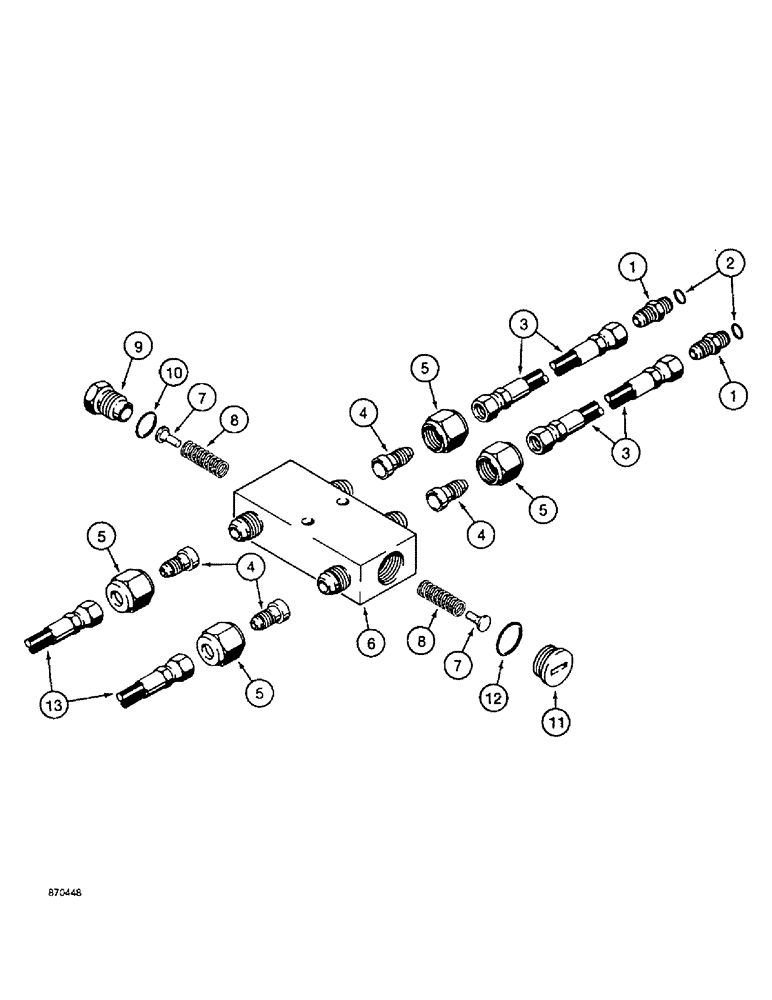

Запчасти Case IH 4900 (8-12) - LOAD CHECK VALVE HYDRAULIC CIRCUIT, USED W/VIBRA TILLER OPERATED BY TRACTOR W/O CHECK VALVE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch, o-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1284323C1

HYDRAULIC HOSE

15 inch (381 mm) long, tractor to check valve

2шт.

4

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER reducing, 5/8 tube O.D. x 9/16-18 inch, flare special

4шт.

5

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

hex, 7/8 inch NF special

4шт.

142864C95

VALVE

ASSEMBLY, load check, alternating

1шт.

6

NSS

NOT SOLD SEPARAT

BODY check valve, order 142864C95 assembly

1шт.

7

85145C1

PIN

retaining

2шт.

8

372649R1

SPRING

check valve

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG hex head, centering spring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG round head, check valve

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

13

1284269C1

HYDRAULIC HOSE

360 inch, (9144 mm) long, check valve to tee, depth control hydraulic circuit supply and return

2шт.
