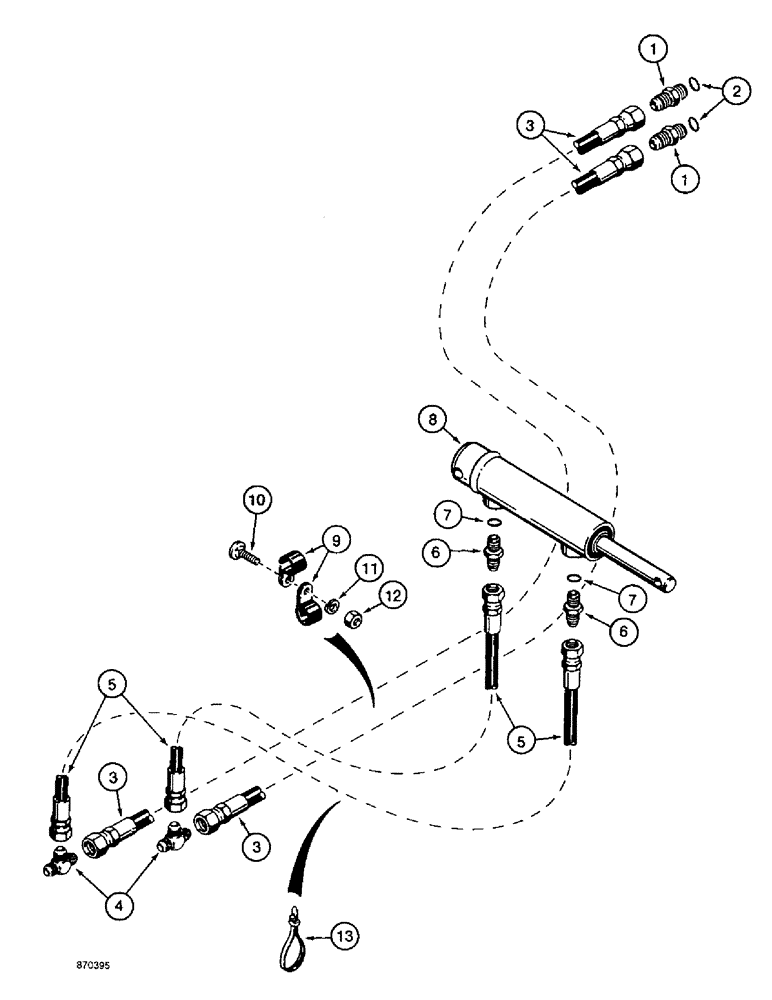

Запчасти Case IH 4900 (8-10) - AUTOMATIC WING TRANSPORT LOCK HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

133933C2

HYDRAULIC HOSE

260 inch (6604 mm) long, tractor to tee, supply and return

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch, flare branch x flare x flare

4шт.

5

1284278C1

HYDRAULIC HOSE

41 inch (1041 mm) long, tee to connector at automatic wing transport lock cylinder

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

8

1286364C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-32, if used

1шт.

8

811998C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke, Cessna, parts list Figure 8-34, if used

1шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

813579C1

CABLE TIE

CABLE STRAP tie

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.
