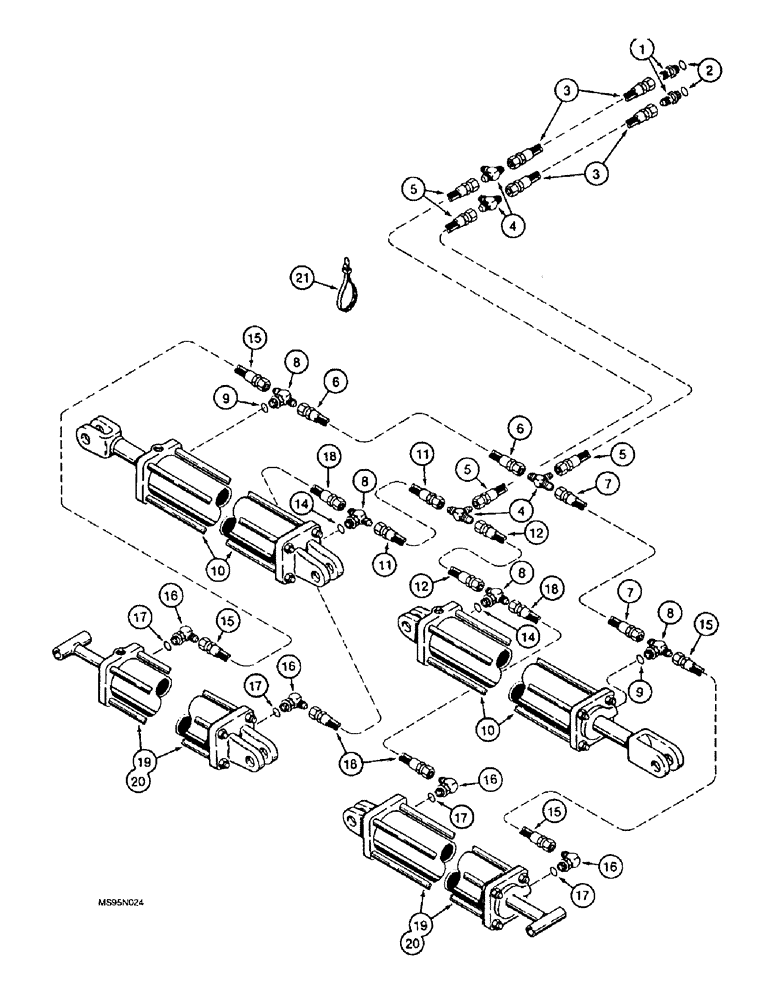

Запчасти Case IH 4900 (8-08) - WING LIFT HYDRAULIC CIRCUIT, 44 FT (13.5 M) THROUGH 52 FT (15,8 M) WIDE VIBRA TILLERS, DOUBLE FOLD (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

133933C2

HYDRAULIC HOSE

260 inch (6604 mm) long, tractor to tee, supply and return

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

4шт.

5

1284368C1

HYDRAULIC HOSE

100 inch (2540 mm) long, tee to tee, supply and return

2шт.

6

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

Tee to primary wing lift cylinder rod end tee, LH

1шт.

7

1284366C1

HYDRAULIC HOSE

100 inch (2540 mm) long tee to primary wing lift cylinder rod end tee, right hand

1шт.

8

1284157C1

TEE,9/16"-18, 37 Degree x 3/4"-16, O-Ring Br

adjustable, special, if used

2шт.

8

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3/4-16 adj. o-ring branch x 9/16-18 inch flare x flare, if used

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

224795C92

CYLINDER

ASSEMBLY, 4 (102 mm) ID x 34 inch (864 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-24, if used

2шт.

10

810662C91

CYLINDER

ASSEMBLY, 4 (102 mm) ID x 34 inch (864 mm) stroke, Prince, parts list figure 8-26, if used

2шт.

11

810604C1

HYDRAULIC HOSE

29 inch (735 mm) long, tee to primary wing lift cylinder closed end tee, left hand

1шт.

12

147878C1

HOSE

65 inch (1650 mm) long tee to primary wing lift cylinder closed end tee, right hand

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

15

147779C1

HYDRAULIC HOSE

145 inch (3683 mm) long, tee to elbow at rod end of secondary wing lift cylinder

2шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

4шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

810604C1

HYDRAULIC HOSE

29 inch, (735 mm) long, tee to elbow at closed end of secondary wing lift cylinder

2шт.

19

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 3-1/2 (89) ID x 16 inch (406 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-28, used on 44 ft (13.5 m) Vibre Tillers

2шт.

19

1272149C92R

REMAN-HYD CYLINDER

4900 CASE IH VIBRA TILLER, ASSEMBLY, Iowa Industrial Hydraulics (9/87-)

2шт.

19

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

20

1272150C91

CYLINDER

ASSEMBLY, 4 (102) ID x 16 inch (406 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-30, used on 47 ft (14.5 m) through 52 ft (15.8 m) wide Vibra Tillers

2шт.

21

813579C1

CABLE TIE

CABLE STRAP tie

1шт.
