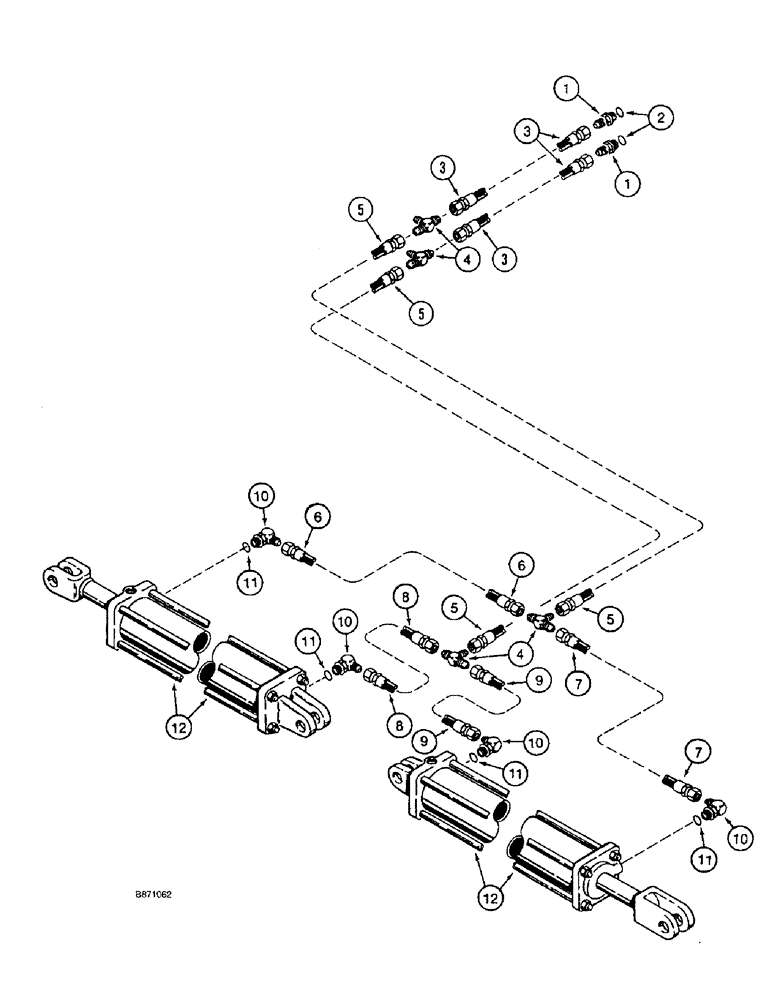

Запчасти Case IH 4900 (8-06) - WING LIFT HYDRAULIC CIRCUIT, 31 FT (9.4 M) THROUGH 41 FT (12.5 M) WIDE VIBRA TILLERS, VERTICAL FOLD (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

133933C2

HYDRAULIC HOSE

260 inch (6604 mm) long, tractor to tee, supply and return

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

4шт.

5

1284368C1

HYDRAULIC HOSE

100 inch (2540 mm) long, tee to tee, supply and return

2шт.

6

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

Tee to primary wing lift cylinder rod end, LH

1шт.

7

1284366C1

HYDRAULIC HOSE

100 inch (2540 mm) long tee to primary wing lift cylinder rod end, right end

1шт.

8

810604C1

HYDRAULIC HOSE

29 inch (735 mm) long, tee to primary wing lift cylinder closed end, left hand

1шт.

9

147878C1

HOSE

65 inch (1650 mm) long, tee to primary wing lift cylinder closed end, right hand

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

1285753C94

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, Iowa Industrial Hydraulics, parts list figure 8-20, if used

2шт.

12

810665C91

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke, Prince, parts list figure 8-22, if used

2шт.

13

813579C1

CABLE TIE

CABLE STRAP tie, not shown

1шт.
