Запчасти Case IH 4900 (8-04) - DEPTH CONTROL HYDRAULIC CIRCUIT, 47 FOOT (14.5 M) THROUGH 52 FT (15.8 M) WIDE VIBRA TILLERS (08) - HYDRAULICS

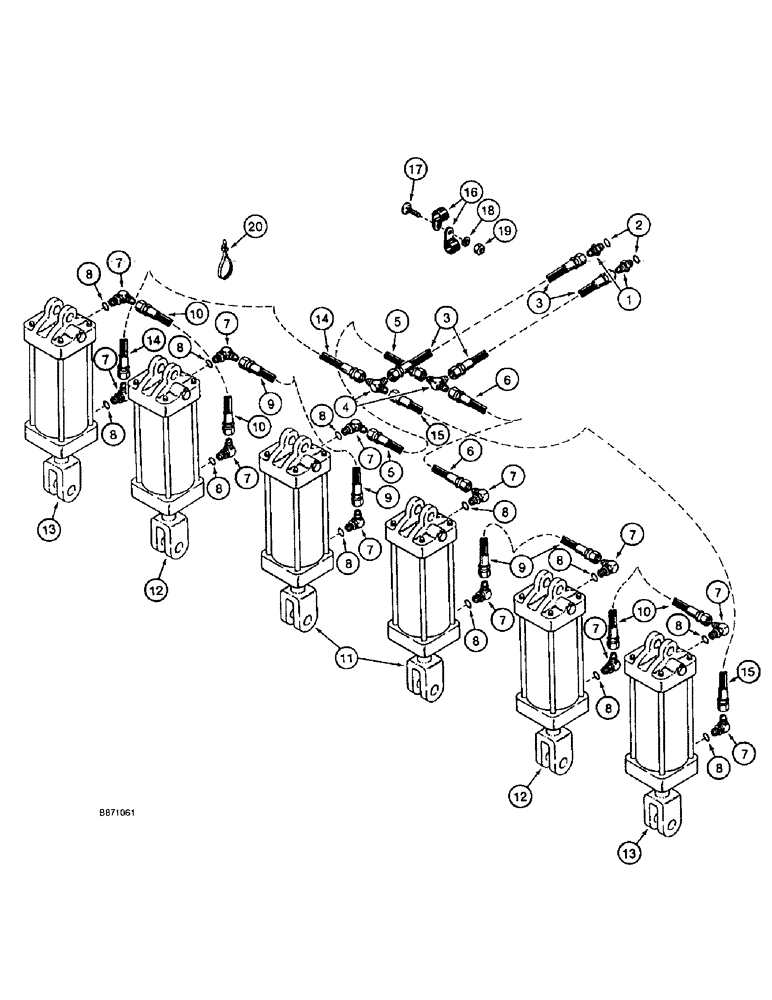

Схема запчастей Case IH 4900 - (8-04) - DEPTH CONTROL HYDRAULIC CIRCUIT, 47 FOOT (14.5 M) THROUGH 52 FT (15.8 M) WIDE VIBRA TILLERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1284269C1

HYDRAULIC HOSE

360 inch (9144 mm) long, tractor to tee, supply and return

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

2шт.

5

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

55 inch (1397 mm) long tee to main frame depth control cylinder, closed end, left hand

1шт.

6

812381C2

HYDRAULIC HOSE

115 inch (2921 mm) long tee to main frame depth control cylinder, closed end, right hand

1шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

12шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

129764C2

HYDRAULIC HOSE

215 inch (5461 mm) long, main frame depth control cylinder, rod end to primary wing frame depth control cylinder, closed end

2шт.

10

1284369C1

HYDRAULIC HOSE

130 inch (3300 mm) long, primary wing frame depth control cylinder, rod end to secondary wing frame depth control cylinder, closed end

2шт.

11

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke, parts list figure 8-14

2шт.

11

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

11

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

12

1282328C92

CYLINDER ASSY.

3-3/4 (95) ID x 8 inch (203 mm) stroke, parts list figure 8-16

2шт.

12

87423766R

REMAN-HYD CYLINDER

3-3/4 (95) ID x 8 inch (203 mm) stroke, parts list figure 8-16

2шт.

12

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

13

1282324C93

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke, parts list figure 8-18

2шт.

13

84255910R

REMAN-HYD CYLINDER

4900 (9/87-), Reman For New P/N 1282324C93

2шт.

13

84255910C

CORE-HYD CYLINDER

Return Number

2шт.

14

129673C2

HOSE

280 inch (7112 mm) long, main frame depth control cylinder, tee to secondary wing frame depth control cylinder rod end, left hand

1шт.

15

1284299C1

HYDRAULIC HOSE

350 inch (8890 mm) long, main frame depth control cylinder, tee to secondary wing frame depth control cylinder rod end, right hand

2шт.

16

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

813579C1

CABLE TIE

CABLE STRAP tie

1шт.

Выбрано товаров: 26
