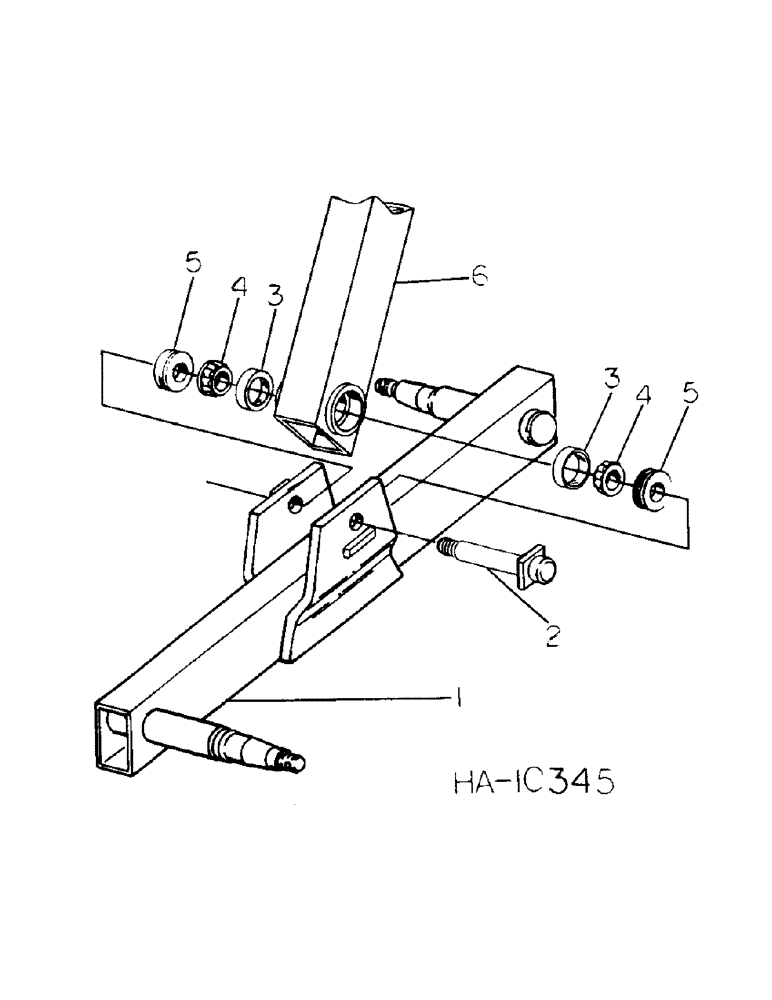

Запчасти Case IH 4700 (A-09) - MAIN FRAME AXLE MACHINES WITH AXLE PIVOT THRU ROCKSHAFT TUBE

1

AXLE ASSY, main frame LH

1шт.

1

AXLE ASSY, main frame RH, order package 1284360C91

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

4шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

2

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

3

651817R1

BEARING CUP

CUP, axle pivot bearing

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing

4шт.

5

813159C2

SEAL

ASSY, axle pivot

4шт.

6

ROCKSHAFT ASSY, main frame

1шт.

1284360C91

PACKAGE

axle, replaces axles 811396C91 & 811397C91, consists of

1шт.

1284064c91 axle, for bushing kit, see s/b ntesb002-87 plate/bushing no. is 1337614c1.

1шт.

1284064C91

TUBE ASSY.

AXLE ASSY

1шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

1284022C1

LARGE PLATE

PLATE

2шт.

1279363C1

PIN

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znd hex lock

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

2шт.

INSTRUCTIONS, installing (NSS)

1шт.

20

123096A2

WHEEL BEARING KIT

not illustrated

1шт.

This kit is used for IH and Case IH Chisel plows models: 5500, 5600, 5700; Vibra Shank Cultivator models: 4500 & 4600; Vira Tiller model: 4700; Moldboard Plow model: 7500; Disk Harrow models: 3900, 770, 596, late model 496 & machines with 6-bolt heavy-duty hubs

1шт.

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

651817R1

BEARING CUP

CUP

1шт.

663558R1

BEARING CUP

1шт.

594702R91

SEAL

1шт.

594703R1

SLEEVE

SEAL

1шт.
