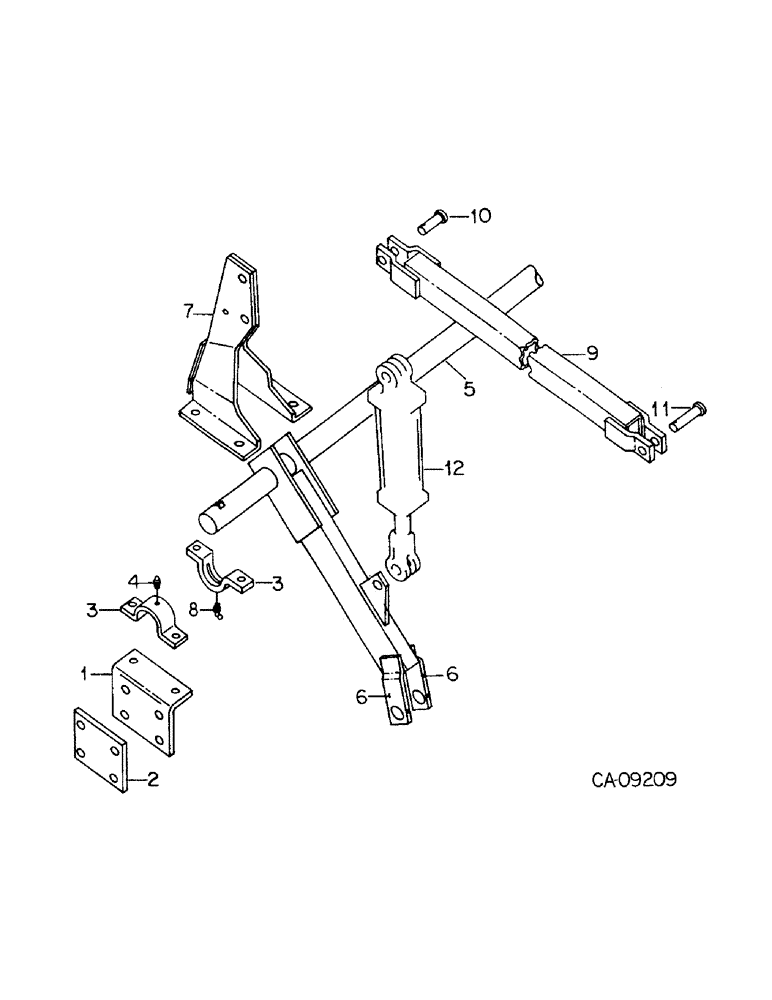

Запчасти Case IH 4700 (A-08) - MAIN FRAME ROCKSHAFT AND DEPTH CONTROL MACHINES WITH AXLE PIVOT THRU AXLE TUBE

1

810460C1

SUPPORT

rockshaft

4шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

2

810590C1

BAR

support reinforcement

4шт.

3

810463C1

STRAP

CAP, rockshaft

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

5

1284030C1

ROCKSHAFT

ASSY, main frame

1шт.

6

1284022C1

LARGE PLATE

PLATE, pivot

1шт.

7

810934C1

SUPPORT

ASSY, rockshaft cylinder

1шт.

8

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

4шт.

9

811969C1

ROD

ASSY, cyl support rigid truss

2шт.

10

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4.l hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

CYLINDER, depth control, refer to hydraulic system

1шт.
