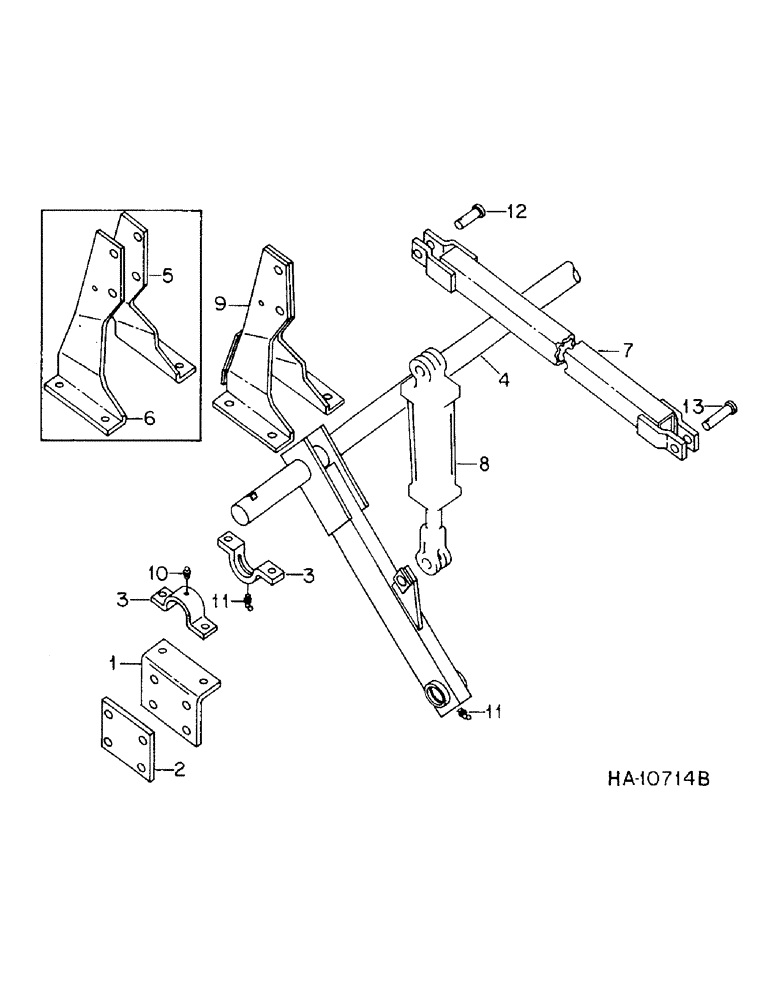

Запчасти Case IH 4700 (A-06) - MAIN FRAME ROCKSHAFT AND DEPTH CONTROL MACHINES WITH AXLE PIVOT THRU ROCKSHAFT TUBE

1

810460C1

SUPPORT

rockshaft

4шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

810590C1

BAR

support reinforcement

4шт.

3

810463C1

STRAP

CAP, rockshaft & cylinder support

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

4

810453C2

ROCKSHAFT

ASSY, main frame, replaced by 1284030C2, for service also furnish

1шт.

1284030C1

ROCKSHAFT

1шт.

1284064C91

TUBE ASSY.

AXLE

2шт.

1279363C1

PIN

2шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znd hex lock

4шт.

5

810464C2

SUPPORT, rockshaft cylinder LH, order support assy 810934C1

2шт.

6

810465C2

SUPPORT, rockshaft cylinder RH, order support assy 810934C1

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

811969C1

ROD

ASSY, cyl support rigid truss

2шт.

8

CYLINDER, depth control, refer to hydraulic system

1шт.

9

810934C1

SUPPORT

ASSY, rockshaft cylinder, replaces LH & RH supports 810464C1 & 810465C1

2шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

11

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

4шт.

12

25419R1

PIN

1 x 2.75 hd type 5

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

13

21679R1

HEADED PIN,1" x 3 3/4"

PIN, 1 x 3.750 hd type 1

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.
