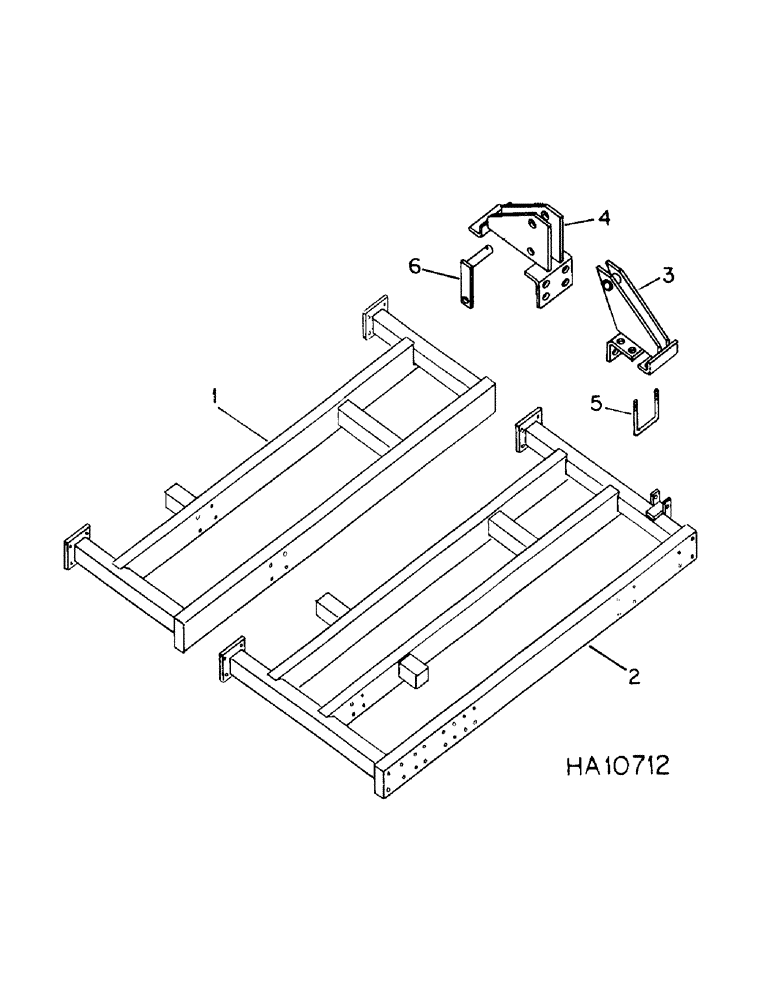

Запчасти Case IH 4700 (A-05) - SECONDARY WING FRAME EXTENSIONS AND FRONT HINGES, FOR USE W/ DOUBLE FOLD MODELS

1

810433C1

FRAME

ASSY, 59 in wing secondary LH

1шт.

1

810434C1

FRAME

ASSY, 59 in wing secondary RH for 47 ft to 51 ft models

1шт.

1

810608C1

FRAME

ASSY, 39.37 in wing secondary for 44 ft models

2шт.

2

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

32шт.

3

810748C1

HINGE

ASSY, wing frame outer front

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

811956C1

HINGE

ASSY, wing frame inner

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

5

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, inner and outer hinge

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

811958C1

PIN

hinge

2шт.

25540R1

WASHER,1 1/16" x 2" x .134", HDN

1.062 x 2.000 x .134 PHC hdn

8шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5, front pin to inner hinge

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.
