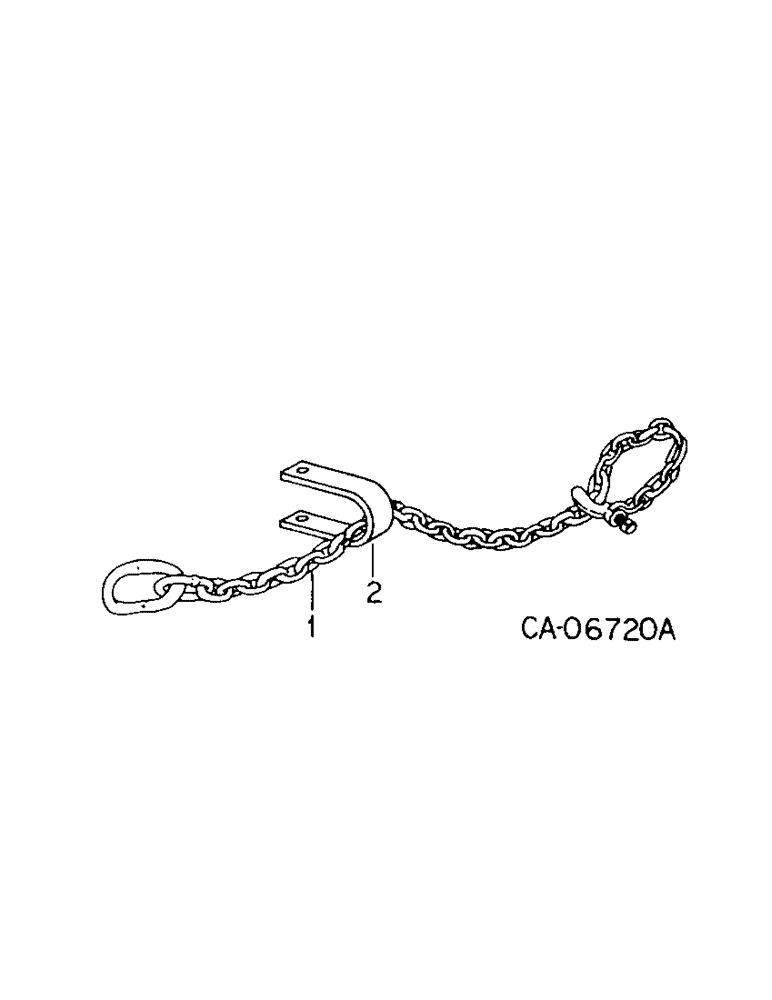

Запчасти Case IH 4700 (A-46) - SAFETY CHAIN EQUIPMENT

1

100682C2

CHAIN (AG)

CHAIN, 10,500 lbs safety, for use with wing model

1шт.

1

63506C2

CHAIN (CE)

CHAIN, 20,000 lbs safety, for use with double fold models

1шт.

2

148558C1

CLEVIS

replaces S9173A, for use w/chain 100682C2 10,500 lbs

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln P/T lock type 5

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

18444R1

NUT,3/4"-10, GB

3/4 pln P/T lock type 5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

12шт.

1279163C1

CLEVIS COUPLING

CLEVIS, safety chain, for use w/chain 63506C2 20,000 lbs

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

1шт.

22244R1

LOCK NUT

3/4 P/T lock type 5

1шт.

822395C1

BAR

washer

2шт.

61913C92

PACKAGE

chain hardware, for use w/chain 100682C2 10,500 lbs, consists of ref no. 2 and attaching hardware

1шт.
