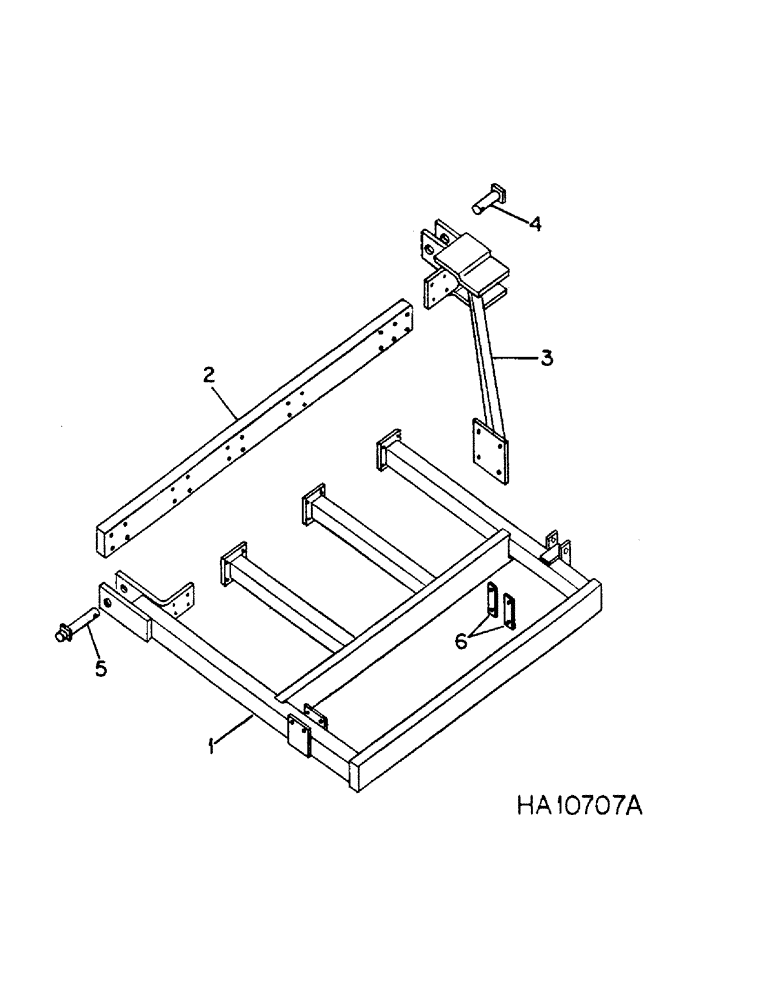

Запчасти Case IH 4700 (A-03) - WING FRAME, FOR 31 FT TO 34 FT WING MODELS

1

810622C1

FRAME

ASSY, LH wing

1шт.

1

810623C1

FRAME

ASSY, RH wing

1шт.

2

810522C2

TUBE

inner hinge

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

16шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

40шт.

120384

WASHER,1/2"

LOCK, 1/2"

40шт.

3

810628C1

FRAME

ASSY, wing front hinge

2шт.

4

811968C1

PIN

ASSY, 6.4 in. front hinge

2шт.

5

810945C1

PIN

ASSY, 8.0 in. rear hinge, replaces 811965C1

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

6

811944C1

BAR

front hinge tube mounting

4шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
