Запчасти Case IH 4700 (A-45) - HYDRAULIC COUPLERS

395149R1

QUICK MALE COUPLING

COUPLER, poppet style, 7/8-14 thread

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER, self sealing type, 7/8-14 thread

1шт.

1272399C1

UNION

COUPLER, self sealing type, ISO standard, 7/8-14 thread

1шт.

1285718C1

COUPLING

COUPLER, self sealing type, ISO standard, 3/4-16 thread

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, use on coupler with 7/8-14 threads

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, use on couplers with 3/4-16 threads

1шт.

407045R1

FITTING

BUSHING, 3/4-16 str thd x 7/8-14 str thd, used on adapt 3/4-16 hose fitting to 7/8-14 coupling

1шт.

407545R1

FITTING

BUSHING REDUCER, 7/8-14 str thd x 3/4-16 str thd, used on adapt 7/8-14 hose fitting to 3/4-16 coupling

1шт.

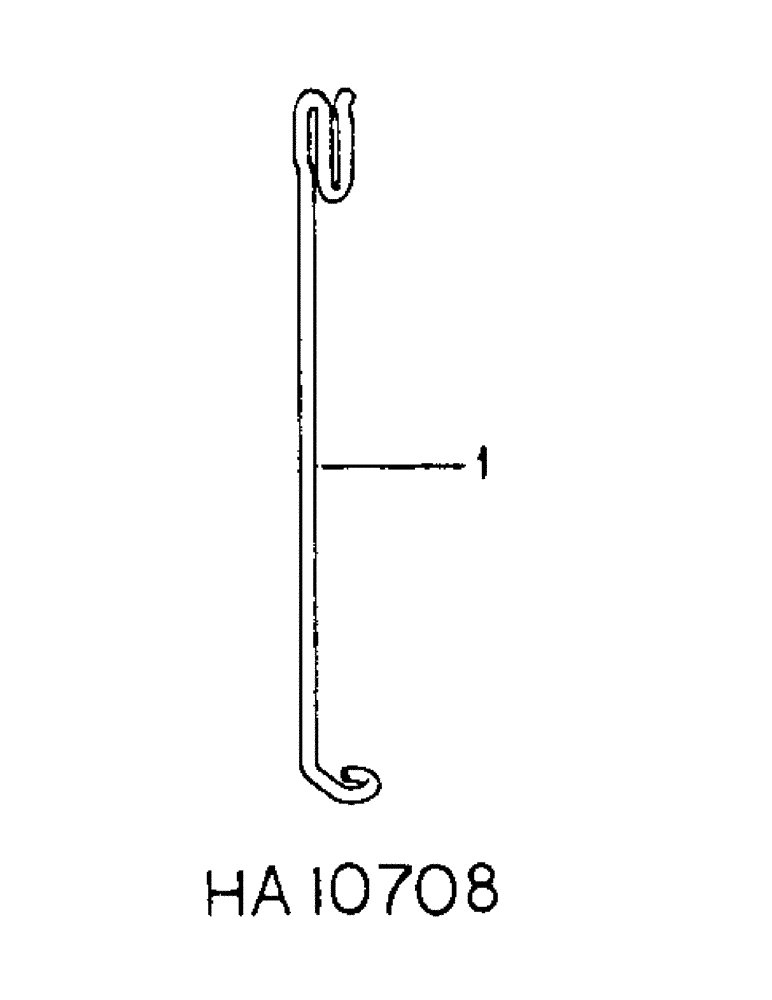

1

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.
