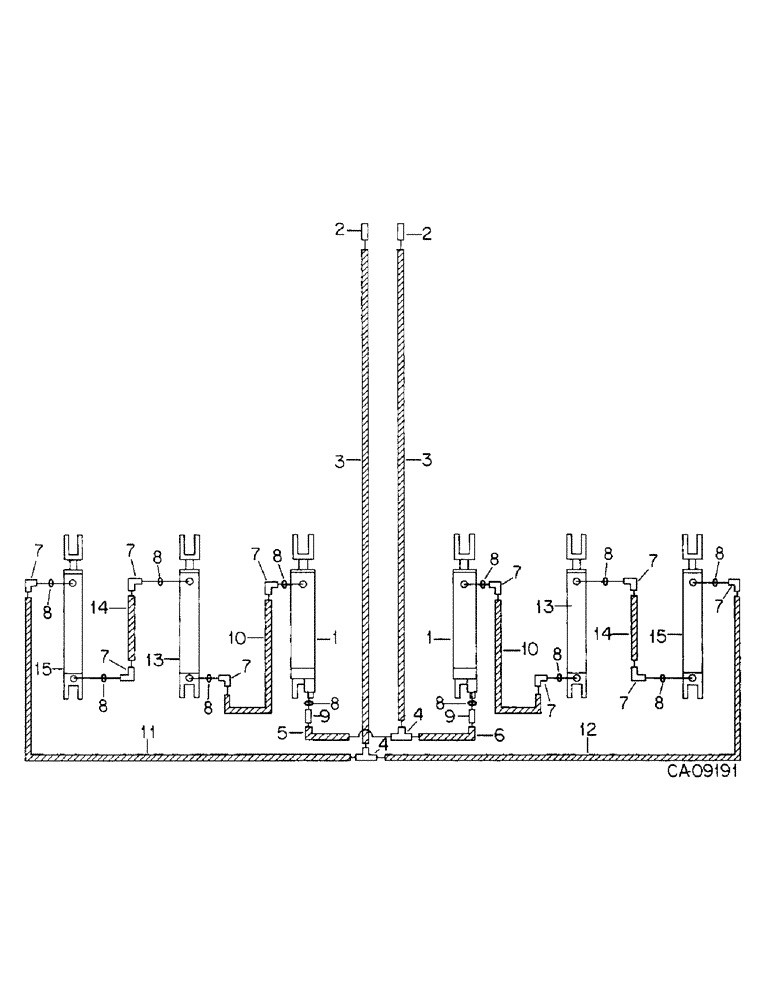

Запчасти Case IH 4700 (A-42) - HYDRAULIC SYSTEM, DEPTH CONTROL, FOR 44 TO 52 SIZES DOUBLE FOLDED MODELS W/ WELDED HYD. CYLINDERS

1

813526C91

CYLINDER

4.25 x 8 master, refer to cyl - 1 for components

2шт.

812030C91

SEAL KIT

o-ring & seal

1шт.

810751C1

PIN

cyl mounting headed

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

1277593C91

ROD

SCREW ASSY, L

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, replaces 481352R1

2шт.

3

1284269C1

HYDRAULIC HOSE

HOSE, front tractor hyd 3/8 x 360 in. long, replaces hose, 810491C1 (70 in. long) hose, 810593C1 (292 in. long) & fitting 9402787, for service replacement of hoses also furnish

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 C-Z hyd flared three way, replaces 9402982

2шт.

5

812381C2

HYDRAULIC HOSE

HOSE, master cyl pressure LH 3/8 x 115 in. long, replaces 810597C1, for service replacement also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

6

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE, master cyl pressure RH 3/8 x 55 in. long, replaces 810599C1 for service replacement also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

7

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D, replaces 9410977

10шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

12шт.

9

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, replaces 9410203

2шт.

10

1284298C1

HYDRAULIC HOSE

HOSE, slave cyl pressure 3/8 x 160 in. long, replaces 819845C1

2шт.

11

1284267C1

HOSE

return LH 3/8 x 335 in. long, replaces hose, 810594C1 (249 in. long) hose, 810598C2 (89 in. long) & fitting 9402787, for service replacement also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

12

1284261C1

HOSE

return Rh 3/8 x 250 in. long, replaces hose, 810595C2 (183 in. long) hose, 810598C1 (98 in. long) & fitting 9402787, for service replacement also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

13

813527C91

CYLINDER

4 x 8 slave, refer to cyl - 1 for components

2шт.

812295C91

SEAL KIT

o-ring & seal

1шт.

810751C1

PIN

cyl mounting headed

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

14

813006C2

HYDRAULIC HOSE

HOSE, wing lift extension 3/8 x 85 in. long, replaces 810598C1, for service replacement also furnish

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

15

813528C91

CYLINDER

3.75 x 8 slave, refer to cyl - 1 for components

2шт.

812300C91

SEAL KIT

o-ring & seal

1шт.

810751C1

PIN

cyl mounting headed

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

813579C1

CABLE TIE

STRAP, hose tie, HV

10шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose tie

8шт.

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

.438 dia znd coated med clo

8шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.
