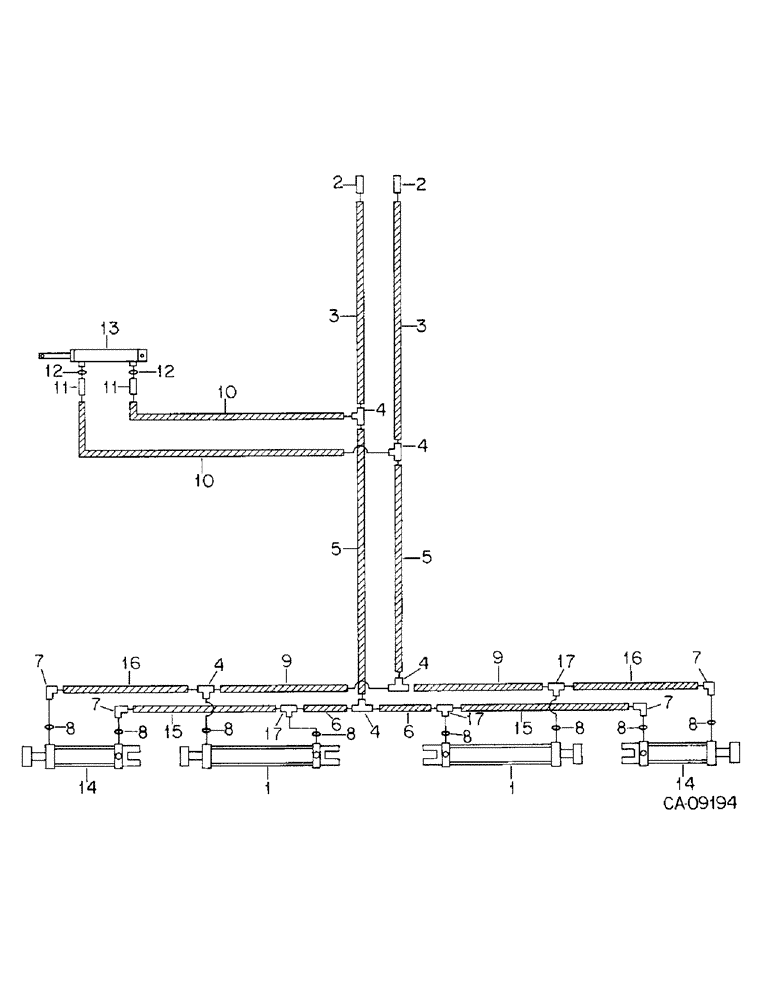

Запчасти Case IH 4700 (A-36) - WING AND SECONDARY WING EXTENSION LIFT HYDRAULICS, FOR 44 FT TO 52 SIZES DOUBLE FOLD MODELS

1

224795C91

CYLINDER

4 x 34 wing lift, refer to cyl, 1 for components, replaces 810665C91

2шт.

1272883C1

KIT

o-ring & seal or

1шт.

1

810662C91

CYLINDER

4 x 34 wing lift, refer to cyl, 1 for components, replaces 224791C92

2шт.

813389C91

SEAL KIT

o-ring & seal

1шт.

813192C1

PIN

cylinder rod end

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

810751C1

PIN

cylinder base headed

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, replaces 935433R1

2шт.

3

1284260C1

HYDRAULIC HOSE

HOSE, front tractor hyd 3/8 x 265 in. long, replaces hose, 810205C1 (70 in. long), hose, 810205C1 (70 in. long), hose, 810606C1 (195 in. long) & fitting, 9402786, for service replacement of hoses also furnish

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

2шт.

4

9402981

SHAFT

3/8 C-Z hyd flared three way

4шт.

5

1301350C2

HYDRAULIC HOSE

HOSE, rear hydraulic 3/8 x 120 in. long, replaces hose, 810600C1 (118 in. long)

2шт.

6

810604C1

HYDRAULIC HOSE

HOSE, wing lift hyd pressure, 1/4 x 29 in. long

2шт.

7

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D, replaces elbow 9410976, o-ring 364839, washer 810767R1 & adapter 610952R1

8шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

8шт.

9

147878C1

HOSE

wing lift hyd return 1/4 x 65 in. long, replaces hose 810603C1

2шт.

10

1284278C1

HYDRAULIC HOSE

HOSE, lockout cyl 1/4 x 41 in. long, replaces hose, 810952C1

2шт.

11

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

13

811998C91

CYLINDER ASSY.

CYLINDER, 1.5 x 4 transport lockout, refer to cyl - 1 for components

1шт.

812351C1

SEAL KIT

o-ring & seal or

1шт.

13

1286364C91

CYLINDER ASSY.

CYLINDER, 1.5 x 4 transport lockout, refer to cyl - 1 for components, replaces 810747C91

1шт.

85020C1

SEAL KIT

KIT, o-ring & seal

1шт.

23171R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3. hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

14

224787C91

CYLINDER ASSY.

CYLINDER, 3.5 x 18 wing lift extension, refer to cyl - 1 for components, replaces 810764C91

2шт.

84919C1

SEAL

KIT, o-ring & seal or

1шт.

14

810383C91

CYLINDER

3.5 x 18 wing lift extension, refer to cyl - 1 for components

2шт.

810254C1

SEAL KIT

o-ring & seal

1шт.

810751C1

PIN

cyl mounting

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

15

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

HOSE, wing lift extension pressure, 1/4 x 165 in. long

2шт.

16

147779C1

HYDRAULIC HOSE

HOSE, wing lift extension return, 1/4 x 145 in. long, replaces hose, 810602C1

2шт.

17

1284157C1

TEE,9/16"-18, 37 Degree x 3/4"-16, O-Ring Br

3/8 C-Z hyd fld tube adj

4шт.

813579C1

CABLE TIE

STRAP, hose tie, HV

10шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose tie

12шт.

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

.438 dia znp coated med clo

8шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.
