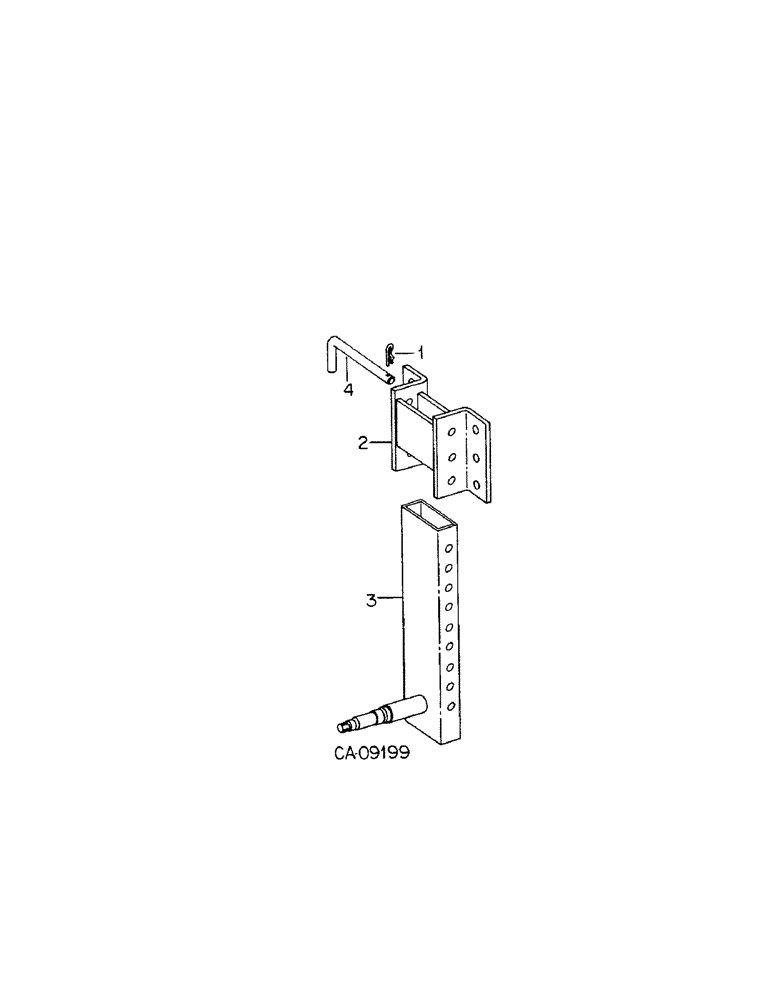

Запчасти Case IH 4700 (A-32[A]) - GAUGE WHEEL MOUNTING AND SUPPORTS

1

591107R1

COTTER PIN

QA cotter

2шт.

2

1284036C1

SPROCKET ASSY.

SUPPORT ASSY, gauge wheel, replaces 811945C1

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

811542C92

AXLE

ASSY, gauge wheel, includes 1-467750R1 washer, 1-427640 nut and 1-103398 pin

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

PIN, 5/32 x 1 pln cot

2шт.

4

811951C1

PIN

axle locking

2шт.
