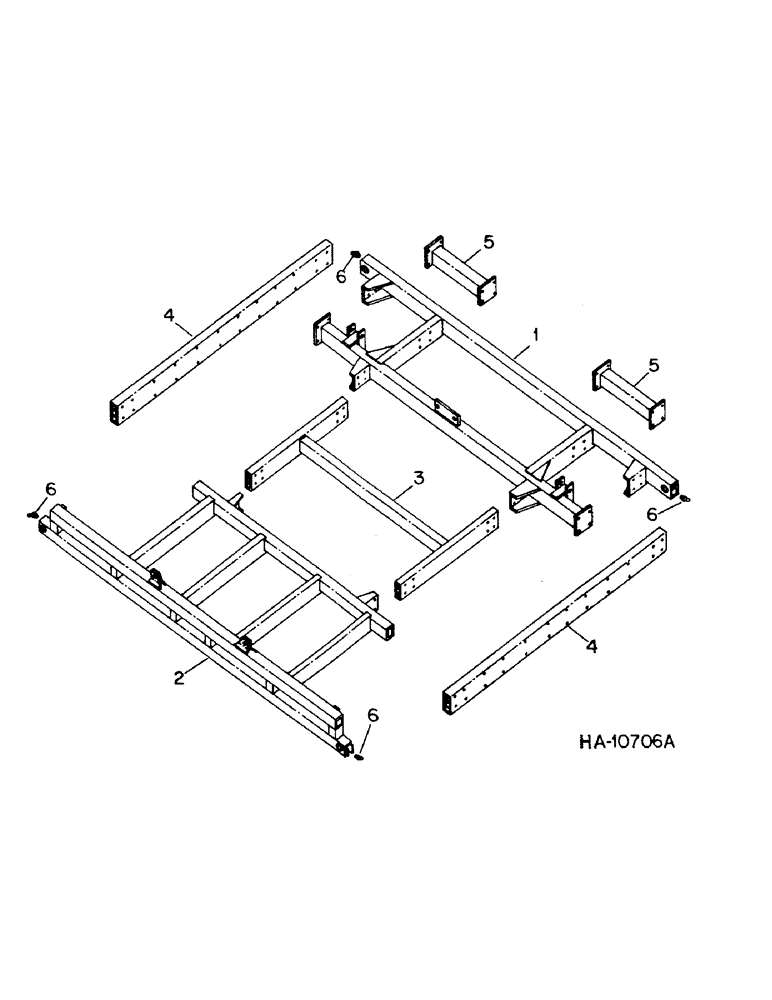

Запчасти Case IH 4700 (A-02) - MAIN FRAME

1

812413C93

FRAME

W/PRODUCT GRAPHICS, front main

1шт.

810170C2

PRODUCT GRAPHIC

warning, wing frames

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general caution

1шт.

2

812415C91

FRAME

W/PRODUCT GRAPHIC, rear main

1шт.

810170C2

PRODUCT GRAPHIC

warning, wing frames

1шт.

3

810685C1

FRAME

ASSY, inner connection

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5, to rear frame

8шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5, to front frame

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

4

810484C2

TUBE

ASSY, frame outer connecting

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

16шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

5

810489C1

TUBE,4.5" Length

ASSY, front shank mounting

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

8шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

6

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

4шт.
